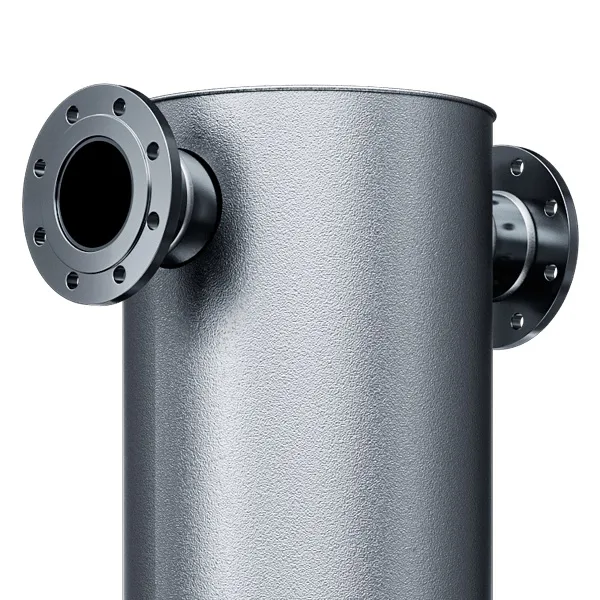

HAD shell and coil heat exchanger

HAD shell and coil heat exchanger

HAD shell and coil heat exchanger is a fully equipped, installation-ready kit consisting of an exchanger, mount and insulation.

HAD shell and coil exchanger is a fully equipped, installation-ready kit consisting of an exchanger, mount and insulation.

As a result of advanced design works, HAD has all the benefits of the shell and coil exchangers plus new solutions such as the horizontal position of the connections; it also comes with an insulation and a mount.

The new HAD features facilitate mounting it to a horizontal installation and shorten and facilitate the whole process. Additionally HAD is a perfect solution in terms of economy, ensuring a cost-efficient solution.

Features

• Easy installation - ensured by delivery with pre-installed mount and insulation
• Saving space - compact size of the exchanger and the possibility of vertical installation reduce the space necessary for installation
• Low operating costs - the X-shaped design of the connections and corrugated coil tubes make the exchangers more resistant to deposits
• High efficiency - high heat exchange coefficient
• Made according to PED, ASME
• Wide range of applications

Design

• HORIZONTAL CONNECTIONS
• INSULATION
• SHELL
• COIL
• CORE
• FACTORY-INSTALLED MOUNT
• FLANGES
