Insatech A/S

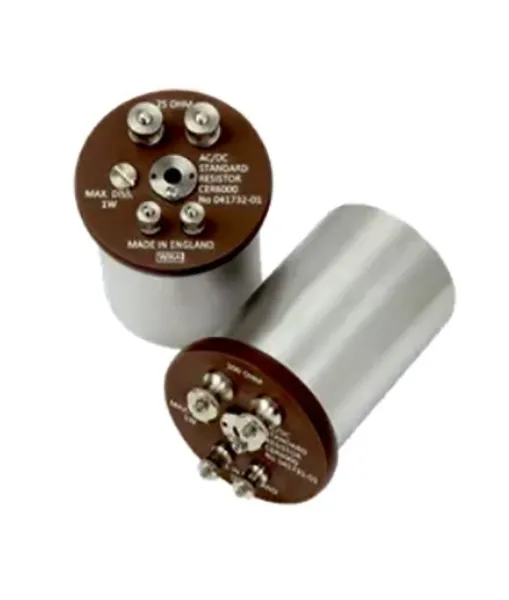

CER6000 Standard reference resistor

CER6000 Standard reference resistor

This model is available in two series: CER6000-RR (reference resistor) and CER6000-RW (standard reference resistor).

High accuracy and long-term stability

The RR series

With the RR series of 4 wire reference resistors you get high accuracy and stability at a good price. The series is designed specifically for use as a comparison standard for AC thermometry resistance bridges in the ASL series. The RR series can also be used in standard electrical laboratories.

The resistors can be supplied in any value between 1 and 10,000 Ω. Typical applications for the RR series are transfer standards or reference source in temperature calibration or electrical standards laboratories.

RW series

The RW series is made of a specially developed alloy which has low thermal and mechanical sensitivity as well as low dielectric loss, insulation and field effects.

Long-term heat treatment of the elements ensures long-term stability and low temperature resistance coefficient. The elements are hermetically sealed in stainless steel containers and filled with dry oil Castrol WOM 14.
