Washing and Sterilling WR Series

Washing and Sterilling WR Series

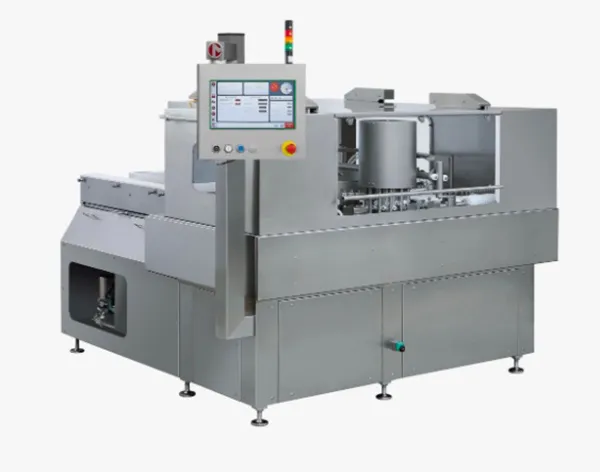

WR are rotary continuos motion machines for internal and external washing of ampoules, Small Volume Parenteral (SVP) vials and larger bottles.

Main features:

• High production capacity at slow conveyance speed;
• Perfect operational repeatability;
• Easy to use;
• Minimal installation space and maximum protection for operator safety, thanks to the washing circuits integrated on board;
• High flexibility and capacity to process all types of ampoules and vial sizes by means of quick and simple format change;
• Easy maintenance and cleaning;
• Mechanical drives inside the machine protected against fluid infiltrations;
• Complete separation between the different washing circuits;
• Brushless drives for the various machine functions to ensure perfect synchronization and centring of needles during washing process;
• Easy in-line connection with other machines;
• Operator interface with industrial PC and touch-screen monitor.

Standard constructional specifications:

• Automatic loading on a motorized sanitary-plastic belt;
• Internal and external washing and blowing;
• Customizable washing/blowing sequence;
• Programmable washing times;
• Water recirculation system and filtration;
• Pressure control of every washing media;
• Parameterizable needle stroke according vial / ampoule height;
• Automatic unloading on tray or in-line to the sterilization tunnel.

TECHNICAL DATA
