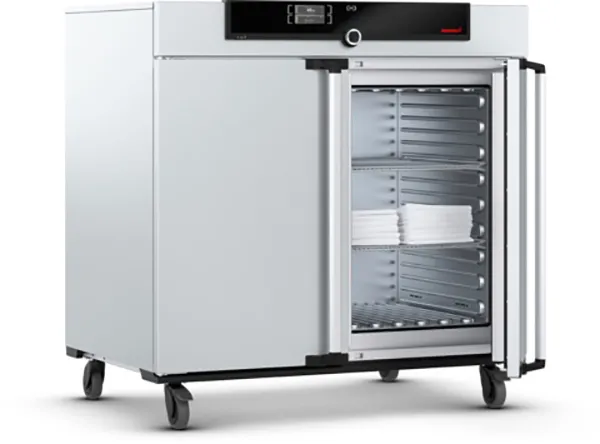

Blanket warmer IF450bw
Standard delivery Blanket warmer
The heating of this incubator is optimally tuned for forced air circulation. Valuable chamber loads for research, pharmaceutics, medicine and food chemistry are warmed up very carefully.
Temperature
Setting temperature range
+20 to +80 °C
Working temperature range
min. 10°C above ambient up to +80°C
Setting accuracy temperature
0.1 °C
Temperature sensor
1 Pt100 sensor DIN class A in 4-wire-circuit
Control technology
Language setting
German, English, Spanish, French, Polish, Czech, Hungarian
ControlCOCKPIT
SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
Timer
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT
the process time does not start until the set temperature is reached
Calibration
three freely selectable temperature values
adjustable parameters
temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime
temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime
Ventilation
Fan
forced air circulation in working chamber, fixed value 100 %
Communication
Documentation
programme stored in case of power failure
Programming
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).
Safety
Temperature control
adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Autodiagnostic system
for fault analysis
Standard equipment
Door
fully insulated stainless steel door with 2-point locking (compression door lock)
Internals
2 stainless steel grid(s), electropolished
Works calibration certificate
incl. works calibration certificate for +37°C
Stainless steel interior
Dimensions
w(A) x h(B) x d(C): 1040 x 720 x 600 mm (d less 39 mm for fan)
Interior
easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Volume
449 l
Max. number of internals
8
Max. loading of chamber
300 kg
Max. loading per internal
30 kg
Textured stainless steel casing
w(D) x h(E) x d(F): 1224 x 1247 x 784 mm (d +56mm door handle)
Housing
rear zinc-plated steel
Electrical data
Voltage Electrical load
230 V, 50/60 Hz
approx. 1800 W
115 V, 50/60 Hz
approx. 1500 W
Ambient conditions
Set Up
The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Altitude of installation
max. 2,000 m above sea level
Ambient temperature
+5 °C to +40 °C
Humidity rh
max. 80 %, non-condensing
Overvoltage category
II
Pollution degree
2
Packing/shipping data
Transport information
The appliances must be transported upright
Customs tariff number
8419 8998
Country of origin
Federal Republic of Germany
WEEE-Reg.-No.
DE 66812464
Dimensions approx incl. carton
w x h x d: 1330 x 1440 x 1050 mm
Net weight
approx. 161 kg
Gross weight carton
approx. 227 kg
