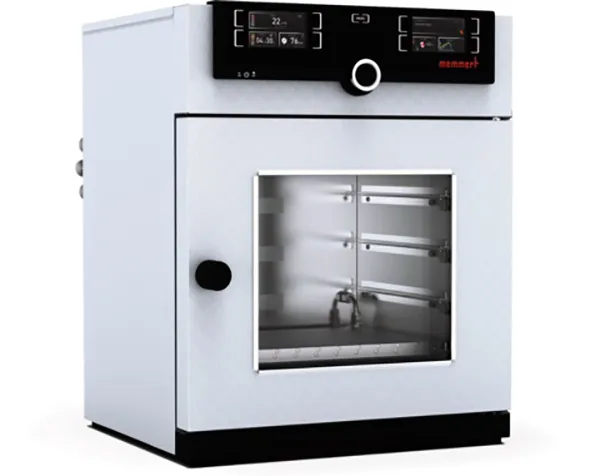

Cooled vacuum oven VO29cool
For gentle drying of bacteria and starter cultures or simulation of intercontinental flights.
Standard delivery Cooled vacuum oven
The direct contact between the load and the heatable thermoshelves in the chamber of the vacuum oven ensures rapid and uniform temperature control of food, cosmetics, watches, books, PCBs or injection moulds, without the loss of heat.
Temperature
Working temperature range
from 5°C (at least 20 below ambient temperature) to +90°C
Setting temperature range
from +5°C up to +90°C
resolution of display for actual values
0.1°C
resolution of display for setpoint values
0,1°C
Pressure (Vacuum)
Vacuum range
5 to 1100 mbar
Pressure control
Digital electronic pressure control for a speed-controlled vacuum pump. Tubing for vacuum, air and inert gas are made of material 1.4571 (ASTM 316 Ti). Programmable, digitally controlled inlet for air.
Permitted final vacuum
0.01 mbar
Maximum leakage rate
0.01 bar/h
Pump control
speed control, optimised rinsing procedures for the pump membranes as well as signal output for pump ON/OFF
Connection
Vacuum connection with small flange DN16, and gas inlet with fresh air supply
Control technology
adjustable parameters
temperature (Celsius or Fahrenheit), pressure (vacuum), programme time, time zones, summertime/wintertime
Language setting
German, English, Spanish, French, Polish, Czech, Hungarian, Italian
ControlCOCKPIT
TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Timer
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT
the process time does not start until the set temperature is reached
Communication
Interface
Ethernet LAN, USB
Documentation
programme stored in case of power failure
Programming
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Safety
Temperature control
mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature
AutoSAFETY
additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature
Autodiagnostic system
integral fault diagnostics for temperature control
Alarm
visual and acoustic
Heating concept
Thermoshelves
1 connection for thermoshelves in the rear
VO cooling
Peltier cooling unit ensures a surface temperature distribution with a maximum deviation of ±1 K across the entire temperature range
VO direct heating
fuzzy-supported MLC (Multi-Level-Controlling) microprocessor controller adapting its performance to the volume (local temperature sensing)
Standard equipment
Works calibration certificate
for +10°C/20 mbar
Interior
additional interior mountings of stainless steel, material 1.4404.
all tubings made of stainless steel, material no. 1.4571
Internals
Cooling- and heating-combination of aluminium, material 3.3547 (ASTM B209), with integrated cooling circuit as well as large-area heating including local temperature sensing (Pt100, 4-wire-circuit); individual overtemperature protection. Further data see stainless steel interior.
Stainless steel interior
Material
Hermetically welded stainless steel interior of extremely corrosion-resistant stainless steel, material 1.4404
Volume
29 l
Dimensions
w(A) x h(B) x d(C): 385 x 305 x 250 mm
Max. loading of chamber
20 kg
Textured stainless steel casing
w(D) x h(E) x d(F): 550 x 607 x 400 mm (d +38mm door handle)
Door
full-sight glass door, inside spring-loaded, 15 mm thick glazed panel in safety glass, outside with anti-splitter screen
Housing
rear zinc-plated steel
Electrical data
Voltage Electrical load
230 V, 50/60 Hz
approx. 400 W
Ambient conditions
Ambient temperature
+5 °C to +40 °C
Set Up
The distance between the wall and the rear of the chamber must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from the wall must not be less than 8 cm.
Humidity rh
max. 80 %, non-condensing
Overvoltage category
II
Pollution degree
2
Packing/shipping data
Transport information
The appliances must be transported upright
Customs tariff number
8419 8998
Country of origin
Federal Republic of Germany
WEEE-Reg.-No.
DE 66812464
Dimensions approx incl. carton
w x h x d: 830 x 1050 x 800 mm
Net weight
approx. 68 kg
Gross weight carton
approx. 91 kg
