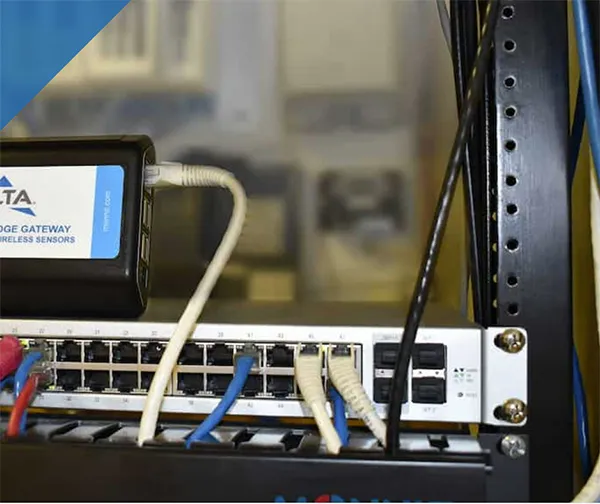

Advanced EDGE Gateway

Advanced EDGE Gateway

Award-winning computing at the EDGE

The multiple award-winning Advanced EDGE Gateway aggregates data from feature-rich Monnit Wireless Sensors to mainstream cloud providers, such as Amazon AWS, Google Cloud Platform, Microsoft Azure, or IBM Watson. Coupling the prominent MQTTS protocol and the IoT’s broadest sensor range, Monnit’s Edge Gateway fulfills a key IoT mission of making deployments more agile and productive.

The Edge Gateway features a step-by-step guided, multilingual web interface for configuring and managing Monnit Wireless Sensors, as well as designating MQTT brokers. As the Ethernet-based gateway receives sensor data, the gateway “fingerprints” the data with a cryptographic validation stamp. This authenticated data is then transmitted to a cloud broker (or multiple brokers), where it arrives in a standard format. The Edge Gateway’s integrated macros enable data configuration in virtually any format, such as JSON or XML, making it a powerful tool for data analysis and action.

Edge Gateway Features:

• Scalability: One gateway accommodates up to 100 wireless sensors
• Robust processing: Linux® UBUNTU™ ARM-based processing platform
• Locally Hosted: Self-hosted iMonnit Express V4.0.2.0 user interface

• Security: Data authentication via unique cryptographic validation “fingerprint”
• Redundancy: Data transmission to multiple cloud providers or MQTT servers, ensuring operational reliability in the event of server failure
