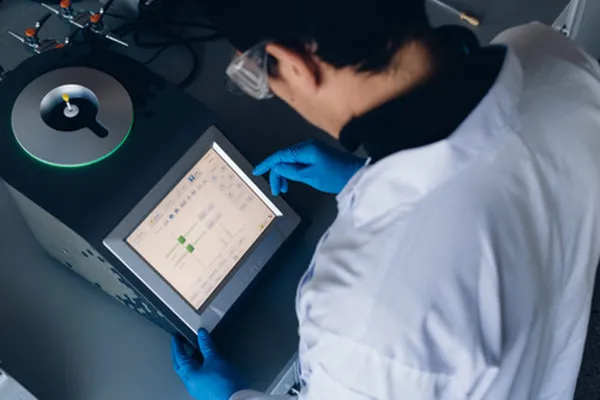

NMReady-60e
The NMReady-60e (download a brochure) is a market-leading compact, single-channel NMR spectrometer. As Nanalysis’ flagship compact NMR spectrometer, the NMReady-60e is a cost-effective tool for customers that require:
SUPERIOR PERFORMANCE
INNOVATIVE DESIGN
SUPREME USABILITY
NMReady-60e OPTIONAL FEATURES
ADVANTAGES FOR TEACHING NMR SPECTROSCOPY
Educational curricula trends are shifting towards hands-on, guided-inquiry approaches that help students learn meaningfully. As chemistry laboratories provide the perfect opportunity for students to supplement cognitive learning with psychomotor skills, an increasing number of analytical characterization techniques have been incorporated into procedures (e.g., UV-Vis, IR). Even though NMR is the most commonly used characterization technique in inorganic and organic chemistry, superconducting NMR instrumentation are usually the least available to undergraduate students.
As the biggest restriction to including NMR spectroscopy in laboratories is the limited accessibility of high-field NMR spectrometers, the NMReady-60e 60 MHz NMR provides an easy solution. It is compact, portable and easy-to-use. Moreover, the NMReady-60e does not require weekly maintenance and is designed to minimize damage occurred by broken NMR tubes.
TECHNICAL SPECIFICATIONS
Operating Frequency:
60 MHz (1.4 T)
Magnet:
Permanent, no cryogens
User Interface:
Built-in Touchscreen or Windows, Mac or Linux compatible
Nuclei:
1H, 19F
Lock:
Deuterium with non-deuterium options
Sample:
Standard 5mm NMR tubes or flow options
Output File Compatibility:
JCAMP-DX, Mestrelab MNova, Bruker TopSpin, ACD/Labs, JEOL Delta, Spinworks more details
Monitoring Software Compatibility:
LabVIEW (via NMReadyCONNECT API), Mestrelab MNova SMA
Resolution:
FWHM ≤ 1.0 Hz (20 ppb)
Sensitivity (SNR):
100:1 (1% EtBz single scan)
Stray Field:
2 Gauss line contained within enclosure
Operating Temp:
18-26°C
Power:
100-240 VAC, 50-60 Hz
Dimensions:
11.8" x 11.0" x 19.2" (30 x 28 x 49 cm)
Weight:
58 lbs (26.3 kg)
Networking:
Ethernet, Wi-Fi
