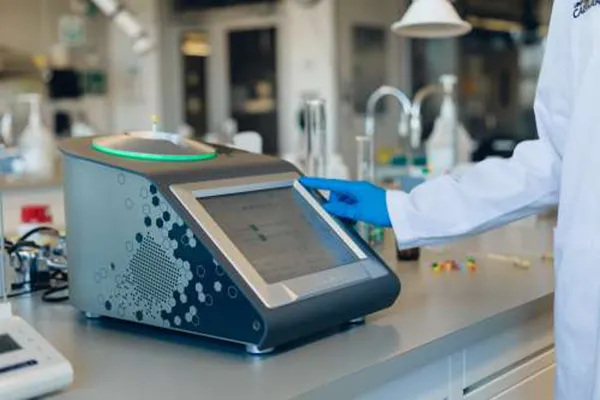

NMReady-60PRO
The NMReady-60PRO (download a brochure) is the next generation of compact 60 MHz NMR spectrometers from Nanalysis. This dual-channel spectrometer was designed to improve workflow for customers that require:
SUPERIOR PERFORMANCE
INNOVATIVE DESIGN
SUPREME USABILITY
MULTINUCLEAR CAPABILITIES
The NMReady-60PRO benchtop NMR spectrometer can be tuned to acquire spectra for two conventional spin active nuclei, as requested. This enhances the utility for characterizing a broad range of natural and synthetic products.
Currently, the instrument’s supported nuclei are: 1H (60 MHz), 7Li (24 MHz), 11B (19 MHz), 13C (15 MHz), 19F (56 MHz), and 31P (25 MHz), inquire about others.
OPTIONAL FEATURES
TECHNICAL SPECIFICATIONS
Operating Frequency:
60 MHz (1.4 T)
Magnet:
Permanent, no cryogens
User Interface:
Built-in Touchscreen or Windows, Mac or Linux compatible
Nuclei:
Dual-tuned: e.g., 1H/13C,1H/31P, 1H/19F, 1H/11B, 19F/7Li, please inquire for more
Lock:
Deuterium with non-deuterium options
Sample:
Standard 5mm NMR tubes or flow options
Output File Compatibility:
JCAMP-DX, Mestrelab MNova, Bruker TopSpin, ACD/Labs, JEOL Delta, Spinworks
Monitoring Software Compatibility:
LabVIEW (via NMReadyCONNECT API), Mestrelab MNova SMA
Resolution:
LWFH ≤ 1.0 Hz (20 ppb)
Sensitivity (SNR):
100:1 (1% EtBz single scan)
Stray Field:
2 Gauss line contained within enclosure
Operating Temp:
18-26°C
Power:
100-240 VAC, 50-60 Hz
Dimensions:
11.8" x 11.0" x 19.2" (30 x 28 x 49 cm)
Weight:
58 lbs (26.3 kg)
Networking:
Ethernet, Wi-Fi
Specifications subject to change without notice
