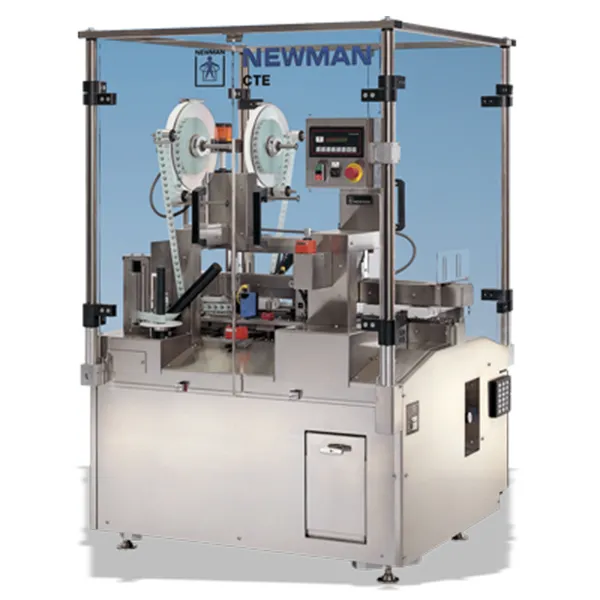

CTE350 Labelling Machine

CTE350 Labelling Machine

Description

The CTE350 is a fully automatic labelling system which applies self-adhesive tamper-evident and hologram labels (security labels) to erected cartons. Designed primarily for the pharmaceutical industry where line space is at a premium, the compact design permits easy integration into existing packing lines.

Operation

At the infeed, cartons are separated, held under a top belt and transported past two stepper motor-driven label stations. Labels are dispensed on to the overhanging vertical faces of the carton and applied with a roller.

Aeroplane and reverse tuck formats can be accommodated. Cartons proceed to the sensing station where sensors detect label presence prior to wipe down.

Both labels must be present for a carton to be accepted; if not, it is ejected into a secure reject area.

Features

• Compact
• GMP Design
• Stainless steel finish
• In Process Control
• Stepper motor drive for label web
• “Positive accept” security system
• Automatic critical device checking
• Reject verification
• Product and reject counter package
• All adjustments scaled for repeatability
• No change parts
• Validation Documentation Package

Options

• Easisplice 470 module enables reel changes without labelling downtime (2 required)
