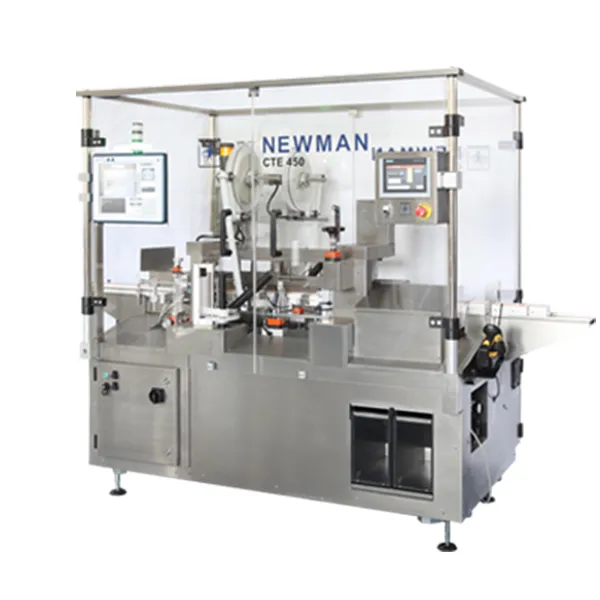

CTE450 labelling machine

CTE450  labelling machine

CTE450 labelling machine

DescriptionThe CTE450 is a fully automatic labelling system which applies a wide range of self-adhesive tamper-evident labels, anti-counterfeit and hologram labels to erected cartons. It has been designed primarily for the pharmaceutical industry where high levels of production efficiency will be a prerequisite for the introduction of Track and Trace systems onto existing packaging lines compatible with the EU Falsified Medicines Directive and other global Serialisation initiatives. The CTE450 is also highly energy-efficient, compact and incorporates full Newman ‘validation-friendly’ specifications.

Operation

At the infeed, cartons are separated, held between top and bottom belts, past the Print and Inspect station where Serialised codes can be printed and then verified by a Vision system. Cartons are then transported past two stepper motor-driven label stations. Labels are dispensed on to the overhanging vertical faces of the carton and applied with a roller. Aeroplane and reverse tuck formats can be accommodated. Cartons proceed to the sensing station where sensors detect label presence prior to wipe down. Both labels must be present for a carton to be accepted; if not, it is ejected into a secure reject area.

Features

  • Track and Trace Serialisation capability
  • Compact GMP Design with stainless steel finish
  • In Process Control
  • “Positive accept” security system
  • Automatic critical device checking
  • Twin reject bins
  • Reject verification
  • Product and reject counter package
  • Validation Documentation Package
  • Low energy consumption

Options

  • Easisplice 470 module enables reel changes without labelling downtime
  • Customer choice of Print and Inspect supplier
