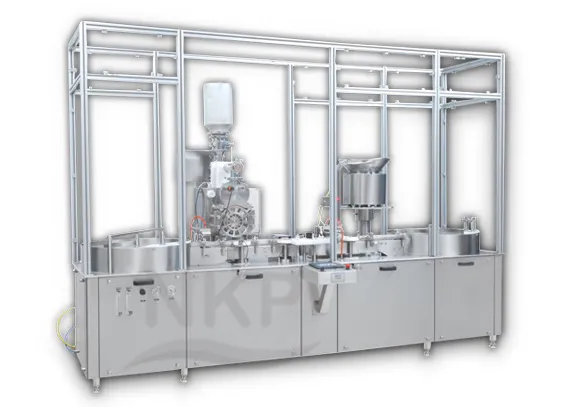

Automatic Injectable Dry Powder Filling with Rubber Stoppering Machine

Automatic Injectable Dry Powder Filling with Rubber Stoppering Machine

Automatic Injectable Dry Powder Filling with Rubber Stoppering Machine

Injectable Dry Powder Filling with Rubber Stoppering Machine for Vials

Automatic injectable dry powder filling machine is a highly compact and durable machine that is employed for filling dry powder into vials and then placing a rubber stopper on its top to prevent leakages of any sort. The fact that the dry powder filler machine is capable of performing two operations of filling and putting rubber stoppers simultaneously, makes it quite an effective piece of machinery for pharmaceutical industries.

Dry powder filling machine has an air requirement of 6Kg/cm2 for carrying out the operations and needs an electric supply of 7 HP. The fill size obtained through the machine can differ from 50 mg to 6 gm by accommodating vial sizes having capacity between 5 ml. to 100ml. The sizes of rubber stopper that are within the permissible range of injectable filling machine are 20 mm, 28 mm & 32 mm.

Machine Specification

Model No.

NKPF - 150DP

Direction

Left to Right

Production Rate

Up to 120 Fills/Min. for single dose.

Up to 60 Fills/Min. for double dose.

Up to 40 Fills/Min. for triple dose.

Up to 30 Fills/Min. for four dose.

Fill Capacity

50 Mg to 1.5 Grms. single dose (with change parts), 1.5

Grms. to 6 Grms. double, triple and four dose. Fill range

depending upon vial opening and bulk density of powder.

Accuracy

±1% depending upon consistency and the uniformity

of bulk density of injectable powder under controlled level of humidity (i.e. 25%).

Electrical Supply

7.0 HP

Power Requirement

415 Volts, 3 Phase (4 Wire System), 50 Hz.

Air Requirement

6 Kg/Cm2

Height of Conveyor

Adjustable from 900 to 950 MM

Dimensions

3300 MM (L) x 840 MM (W) x 2376 MM (H)

Net Weight

960 kgs. (Approx)

Gross Weight

1250 kgs. (Approx)

Fill sizes

50 mg. to 6 grms

Vial Sizes

5 ml. to 100 ml.

Rubber Stopper Sizes

20 mm, 28 mm & 32 mm
