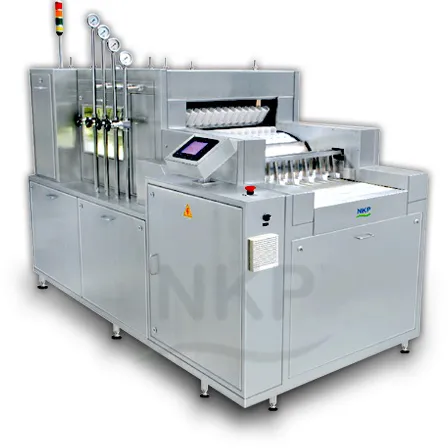

Automatic Linear Vial Washing Machine

Automatic Linear Vial Washing Machine

Automatic Linear Vial Washing Machine

NKP Pharma offers automatic linear vial washing machine to make the surfaces of vial free from any dust or foreign particles. The cleaning of vial is an important procedure in order to make it suitable for further pharmaceutical applications. Our state of the art manufacturing facilities makes us produce optimum quality washing machines for the vial.

Vial washing machine supplied by NKP Pharma has a simple structure with a left to right working direction. The vial washer is offered in two variants- NKLVW 150H / 250H and NKAC 120.

Linear vial washing machine NKLVW 150H / 250H has the capability of attending up to 120 and 240 vials per minute respectively. The vial size can vary from 2 ml. to 100 ml. and the conveyor height can be adjusted from 850 to 900 mm. This makes the machine suitable for a wide variety of applications.

Machine Specifications

Model No.

NKLVW - 150H

NKLVW - 250H

Direction

Left to Right

Left to Right

Production Rate

Up to 120 Vials/Min.

Up to 240 Vials/Min.

Electrical Supply

5.0 HP

5.0 HP

Power Requirement

415 Volts, 3 Phase (4 Wire System) 50 Hz.

415 Volts, 3 Phase (4 Wire System) 50 Hz.

Height of Conveyor

Adjustable from 850 to 900 MM

Adjustable from 850 to 900 MM

Dimensions

2290 MM (L) x 1175 MM (W) x 1575 MM (H)

2290 MM (L) x 1580 MM (W) x 1975 MM (H)

Net Weight

800 Kgs. (Approx)

1200 Kgs. (Approx)

Gross Weight

1250 Kgs. (Approx)

1750 Kgs. (Approx)

Vial Sizes

2 ml. to 100 ml.

2 ml. to 100 ml.
