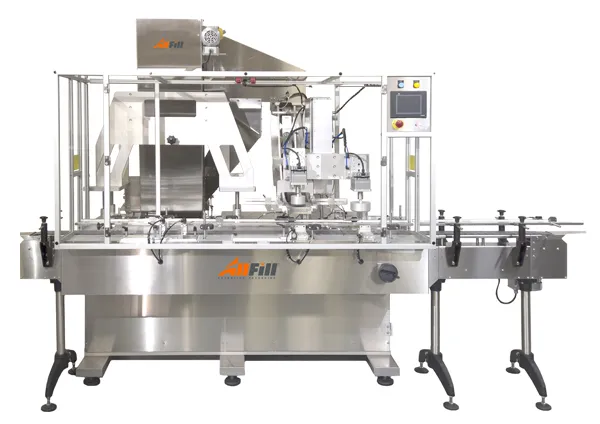

MODEL CI CAPPER
MODEL CI CAPPER
Capping Machines
All-Fill’s fully automatic two station inline chuck capper consists of stainless steel and anodized aluminum construction with an integrated 4.5 ft3 cap hopper and can be seamlessly integrated with ancillary packaging equipment. Standard 15" wide sorting cap elevator chain feeds and orients caps for placement. This machine features a standard cap trap for one unique cap, or for both the first and second station chuck for one unique cap, which are designed per application. Controls offered include an integrated 7" color HMI touchscreen interface with operator controls and motorized height adjustment. A PLC package controlled with up to 50 pre-programmable recipes as well as 7 security levels.
Specifications
Integrated 7" color HMI touchscreen interface with operator controls. PLC controlled with up to 50 pre-programmable recipes. 7 security levels (3 maintenance levels, 3 engineer levels, 1 administration level). Motorized height adjustment.
220 single phase. Transformer charge needed for any other voltages
80 psi
The cap reject system will successfully identify a misapplied cap (high, low or no cap) and reject the container to a reject collection tray. Reject system consists of a Keyence high accuracy laser micrometer sensor and adjustable mounting bracket. A pneumatic pusher is the standard reject mechanism and other options are available based on application. Also features a cap foil detection/no foil reject.
- Extra Large Capacity Bulk Feed Elevator
Upgrade from the standard 15” wide sorting chain to an 18” wide sorting chain and increase the hopper capacity from 4.5 ft3 to 6.5 ft3 to allow for extra production prior to refilling.
Red – Machine stopped/fault, Green – Machine running normal, Blue – Low caps.
Standard raised bed conveyor features hand wheel adjustment. The conveyor is made of stainless steel and high-quality drive components. Features an electric motor and gear drive for low friction. 4” wide tabletop conveyor chain. Variable speed conveyor, adjustable guide rails will handle a wide range of container widths. The conveyor is supported by stainless steel and rounded legs for easy cleaning.
Additional cap trap, additional standard 1st station push through chuck, additional standard 2nd station torqueing chuck, and additional bottle clamps.
Up to 45-60 caps per minute depending on application.
