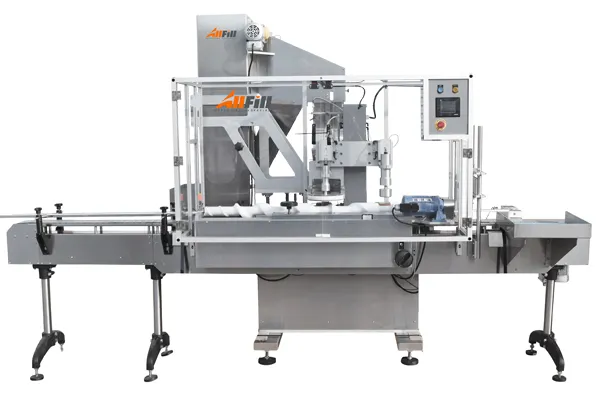

MODEL CS CAPPER

MODEL CS CAPPER

Capping Machines

All-Fill’s fully automatic two station inline chuck capper consists of stainless steel and anodized aluminum construction with an integrated 4.5 ft3 cap hopper and can be seamlessly integrated with ancillary packaging equipment. Standard 15" wide sorting cap elevator chain feeds and orients caps for placement. This machine includes a standard cap trap for one unique cap, or for both the first and second station chuck for one unique cap, which are designed per application. Controls offered include an integrated 7" color HMI touchscreen interface with operator controls and motorized height adjustment. A PLC package controlled with up to 50 pre-programmable recipes as well as 7 security levels.

Specifications

Controls

Integrated 7" color HMI touchscreen interface with operator controls. PLC controlled with up to 50 pre-programmable recipes. 7 security levels (3 maintenance levels, 3 engineer levels, 1 administration level). Motorized height adjustment.

Electrical Requirements

220 single phase. Transformer charge needed for any other voltages

Pneumatic Requirements

80 psi

Cap Reject System

Includes a standard cap trap along with first and second station chucks for unique caps. The cap reject system will successfully identify a misapplied cap (high, low or no cap) and reject the container to a reject collection tray. Reject system consists of a Keyence high accuracy laser micrometer sensor and adjustable mounting bracket. A pneumatic pusher is the standard reject mechanism and other options are available based on application. Also features a cap foil detection/no foil reject.

Extra Large Capacity Bulk Feed Elevator

Upgrade from the standard 15” wide sorting chain to an 18” wide sorting chain and increase the hopper capacity from 4.5 ft3 to 6.5 ft3 to allow for extra production prior to refilling

Three Color Stacklight

Red – Machine stopped/fault, Green – Machine running normal, Blue – Low caps

Conveyor

Includes raised bed conveyor features hand wheel adjustment. The 10' conveyor is made of stainless steel and high-quality drive components. Features an electric motor and gear drive for low friction. 4” wide tabletop conveyor chain. Variable speed conveyor, adjustable guide rails will handle a wide range of container widths. The conveyor is supported by stainless steel and rounded legs for easy cleaning.
