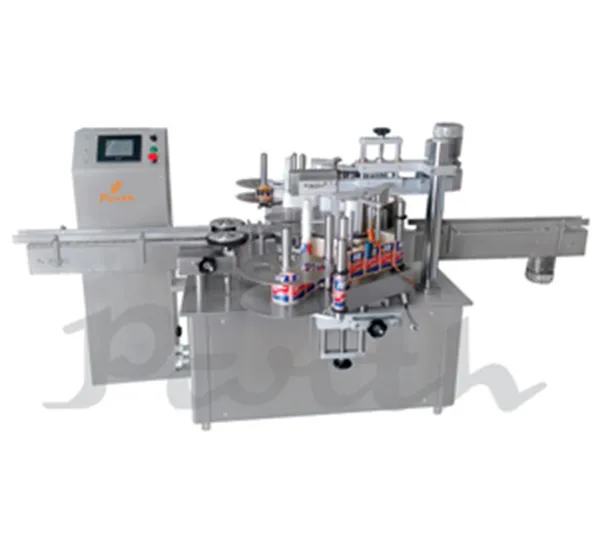

Automatic double side Sticker Labeling Machine PADSL-120

Automatic double side Sticker Labeling Machine PADSL-120

Automatic double side Sticker Labeling Machine PADSL-120

DESCRIPTION:

The Automatic double side Sticker Labeling Machine PADSL-120 is one of the most users friendly. The two side labeling machine is used for full/partial labeling on different size of Flat or rectangular containers. It is capable of labeling up to 120 containers per minutes depending on products and label size. The automatic double side sticker labeller model is equipped with roller spacing device resulting in a simple operation with No change parts required”.

DOUBLE SIDE STICKER LABELING MACHINE OPERATION:

The filled and sealed or Empty bottle received from the Turn Table is conveyed from the Conveyor and on the same conveyor one bottle separator attachment is provide to separate the bottle from continuous movement also two pressing device is provided .on conveyor to straight the bottle & after straight position top holding pressing device is pickup the bottle in original position after pick up the bottle by top pressing device side pressing device release bottle during releasing portion a sensor provided to sense the product after sensing the sensor give command to operate steeper or servo motor to release label when one label is stick the gap sensor give command to stop the servo or stepper during releasing of label provision of brush to press the label & remove the air between label & bottle after completion of the cycle one operation of labeling is finish & conveyor bring the bottle for next operation.

SALIENT FEATURES:

  • High Production Speeds.
  • Mild steel structure cladded with stainless steel 304 sheet to meet GMP norms.
  • Accurate label placement.
  • Product data storage facility.
  • No change parts requirements.
  • Very less down time for change over.
  • Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

OPTIONAL FEATURES OF DOUBLE SIDE LABELER:

  • Round bottle labeling attachment. ( combo Round and Flat)
  • Label Roll Empty – Machine Stop System with Alarm
  • Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
  • Tower Light showing the labeling machine status / operation
  • Colour or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display
  • Vision System for checking Barcode, presence or absence of Coding or pharma code on labels
  • Vision System with OCR system for checking coding on labels
  • Online pneumatically operated product rejection system
