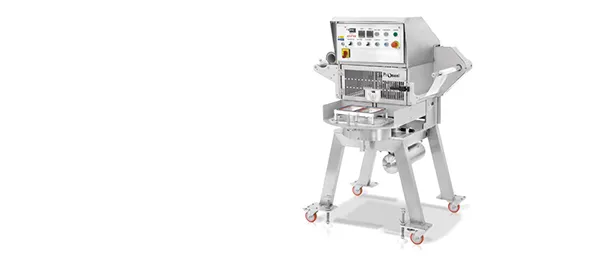

GTR Modified Atmosphere Packaging (MAP)
GTR Modified Atmosphere Packaging (MAP)
Semi-automatic, two-station, rotary-table, tray sealing machine.
Capable of up to 30 Atmospheric packs per minute with a 2 impression tool, the GTR machine is the workhorse of the ready meal industry. It is fully portable with automatic film-feed. Ultra-reliable and easy to operate, the GTR is used around the world and has become the benchmark for portable tray sealing equipment.
Optional ‘free-flow’ gas flush Modified Atmosphere Packaging (MAP) available for extended shelf life.
The quick-release tooling allows the user to change from one tray size to another in less than two minutes.
Standard design features and benefits
GTR Sealing Capacity
|
Number of trays
|
Length
|
Width
|
Depth
|
Diameter
|
|
One
|
270mm
|
439mm
|
120mm
|
270mm
|
|
Two
|
270mm
|
207mm
|
120mm
|
207mm
|
|
Three
|
270mm
|
104mm
|
120mm
|
104mm
|
|
Four
|
270mm
|
71mm
|
120mm
|
71mm
|
Options available
GTR Specifications
|
Height
|
1698mm
|
|
Standard Length
|
1155mm
|
|
Width
|
1020mm
|
|
Weight
|
320kg
|
|
Electrical supply
|
230V single phase (fused at 16A)
|
|
Variations
|
208V 2 phase (fused at 15A)
|
|
Metric
|
Imperial
|
|
Pressure
|
Flow
|
Pressure
|
Flow
|
|
6 Bar
|
140L/Min
|
87psi
|
5CFM
|
Transformers are available to accommodate the electrical supplies in different countries
GTR Production Speeds
up to 15 cycles per minute standard seal
up to 12 cycles per minute gas flush
