GTRe

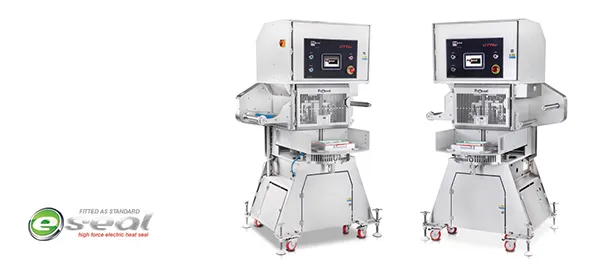

Semi-automatic, two-station, rotary-table, tray sealing machine with full vacuum facility
Capable of sealing up to 20 Vacuum/Gas packs per minute with a 2 impression tool.
At the core of the 'e' design is its flexibility to perform any style of heat seal to a pre-formed tray, be that atmospheric, MAP, VMAP, Skin, Skin Plus, or Skin Deep. Each of these options can be added now or at a later date, or indeed removed as necessary. This flexibility provides the user with the assurance that whatever the latest packaging trend might be, they have equipment suitably geared for the future.
Standard design features and benefits
GTRe Sealing capacity
Number of Trays
Length
Width
Depth
Diameter
One
270mm
439mm
120mm
Two
207mm
Three
104mm
Four
71mm
Options available
GTRe Specifications
Height
2038mm
Standard Length
1296mm
1148mm
Weight
700kg
Electrical supply
400V 3 phase + neutral (fused at 16A)
Transformer Variations
208V 3 phase (fused at 30A)
480V 3 phase (fused at 20A)
600V 3 phase (fused 15A)
Metric
Imperial
Pressure
Flow
6 Bar
140L/Min
87psi
5CFM
Transformers are available to accommodate the electrical supplies in different countries
GTRe Production Speed
up to 4 cycles per minute Skin Deep
up to 10 cycles per minute Vacuum Gas
up to 12 cycles per minute Gas Flush
up to 15 cycles per minute Standard Seal
