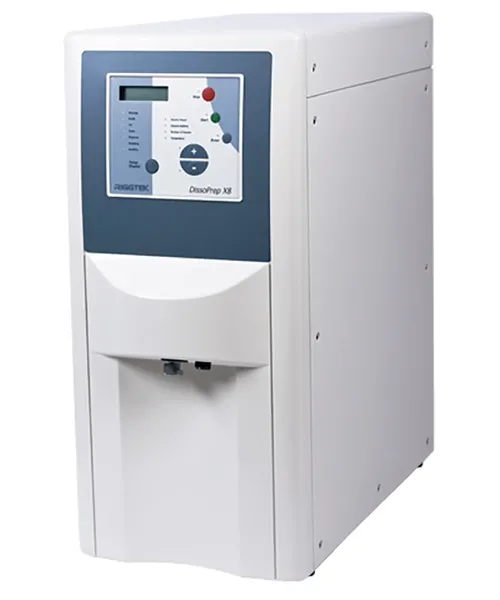

DissoPrep X8
DissoPrep X8
Dissolution Media Preparation Station
The DissoPrep X8 is the innovative original Media Preparation Station with a high-precision gravimetric working principle.
The Dissolution Medium Preparation Station DissoPrep X8 (until 08/2008 DosaPrep X8) has been proven since 1998 and today is the market leader. Quality that pays off for you!
Continuous development and restriction to the essential functions ensures the highest dosing and mixing accuracy with proven reliability. Since 2012, the DissoPrep X8 has been supplemented with the DissoPrep X15 with a large 15-liter tank to simultaneously fill up to two dissolution testers. Thus, the DissoPrep series is flexible for all possible purposes and, together with the unique working principle, your guarantee for convenient and high-precision media preparation and dosing.
Innovative Working Principle
The outstanding feature of our DissoPrep is the gravimetric working principle without liquid pump(s) according to the USP method, this means that Mixing and dosing is done by vacuum and pressure with continuous weight measurement.
The suction through high vacuum (typically
Extensive ease of work
The DissoPrep X8 not only assures a reproducible and highly accurate preparation and dosage of your medium, but also rewards you with a considerable relief of your daily work routine. Compact dimensions allow the use as a desktop device or mobile on a laboratory cart to flexibly reach any dissolution tester. More than 100 different stored methods can be retrieved flexibly. Within about 12 minutes, up to 8 liters of dissolution medium are prepared and according to the guidelines of the USP, EP, JP, FDA and GLP / GMP tempered, mixed and degassed. Since this is completely self-sufficient, you can pursue other activities during this time. Thereafter you can conveniently and precisely dose it directly into the vessels and a report is automatically generated for your documentation. An automatic cleaning process cleans the complete system afterwards.
The standard browser interface for the DissoPrep integrates it quickly and easily without software installation into your IT landscape and enables you a much more easy operation with your PC. Instead of doing extensive entries on the keypad of the DissoPrep, you can use alternatively the convenient and intuitive operation on the (Internet) browser of your PC. In particular, the administration of methods, reports and users with their user permissions can be carried out quickly. You will not miss a touchscreen at the device for starting the preparation and dosing. With the optional "CFR Package" a 21 CFR part 11 compliant use of the DissoPrep is possible and the optional "Backup Package" ensures an automatic backup of your data. For more information about the browser interface, go to "Information" or have a look in the video.
Summary of the features of the DissoPrep X8:
- highest reliability due to the absence of liquid pumps
- reproducible, high-precision gravimetric working principle (typically
- An inlet for premixed medium and an inlet for additives to be admixed (acid, buffer, surfactants) for flexible use - also connectable to demineralised water supply
- fast, self-sufficient and convenient medium preparation of up to 8 liters in approx. 12 minutes - great time savings!
- foaming media possible (e.g. medium containing up to 2% SDS)
- quick and easy dosing directly into the vessels within seconds (3m tube length)
- Weight per vessel adjustable from 100g-8000g in 1g increments
- simple operation via two-line display
- storage capacity for >100,000 methods and reports
- easiest integration into your IT landscape with the "Browser Interface"
- simple, intuitive and clear administration (e.g. method, report and user administration) with the "Browser Interface", replacing the administration via the instruments buttons
- NEW: individual role assignment via the browser interface
- NEW: "Parent-child functionality" for easy method, user and access rights transfer
- NEW: optional 21 CFR Part 11 compliance available for the browser interface
- NEW: optional electronic signature via the browser interface including audit trail commenting
- NEW: optional manual or automatic backup
- Complete documentation incl. achieved vacuum and degassing time (GLP) - Printout via USB, LAN or pdf
- compact dimensions, can be used as a desktop device or mobile on a laboratory cart
- automatic cleaning process of the complete system incl. all tubings
- with calibration and validation protocols of vacuum, temperature and standard volume (weight)
- USP / EP / JP / FDA compliant
- ISO 9001 certified manufacturing - Made in Germany
