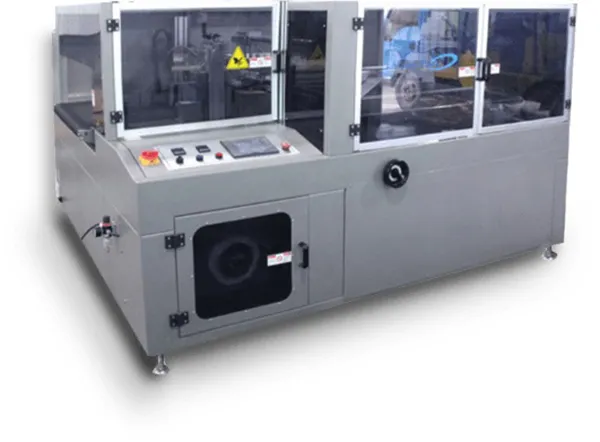

Automatic Side Sealers

Automatic Side Sealers

APSS 5022 – 500mm wide seal
APSS 7522 – 750mm wide seal
APSS 10022 – 1000mm wide seal

Our Automatic Side Sealers have the following features:

•    Machine frame manufactured in Aluminium and painted steel construction
•    Infeed with conveyor belt in line with machine direction
•    Infeed and outfeed conveyor belts have maximum speed of approx. 35 metres/minute
•    Product detection by horizontal or vertical photocell
•    Longitudinal continuous seal via permanently heated sealing blade
•    Waste shrink wrap film spooled up by wind up mechanism with film break control
•    Selection switch for right-handed/left-handed wound film
•    Maintenance free side sealing system, permanently heated, with integrated blade
•    Retractable infeed conveyor belt for ease of film threading
•    Adjustable cross seal and side seal height
•    Inverting triangle fully adjustable
•    PLC machine control and Touch Screen control system fitted as standard
•    20 different program settings can be stored for different pack setups
