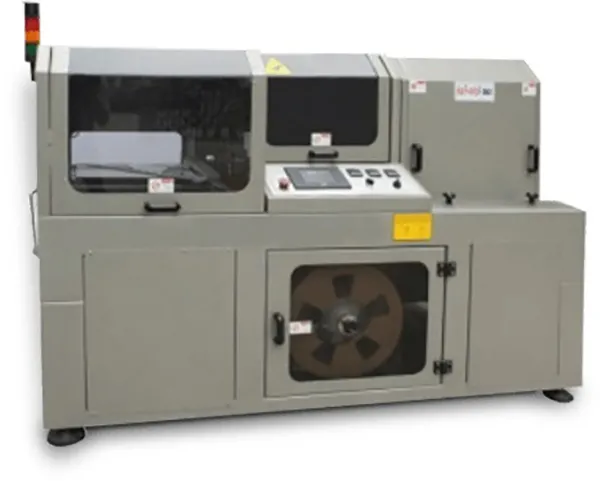

Combined Automatic L Sealer Machine and Tunnels

Combined Automatic L Sealer Machine and Tunnels

The combined automatic l sealer machine has the following features:

• Mono-block machines where sealer and tunnel are mounted on a single chassis – with a single power supply and a small foot print.
• Fitted with casters to aid moving the machine to different productivity centres.

LA5000T – 450mm x 410mm plan sealing dimensions
LA6000T – 610mm x 480mm plan sealing dimensions and fitted with centre seal as standard.

Automatic L Sealer Machine Range

LA6000CS – 610mm x 480mm plan sealing dimensions
LA8000CS – 860mm x 670mm plan sealing dimensions

All machines within our Automatic L Sealer machine range, including our Combined Automatic L Sealer and Tunnel shrink wrapping machine, have the following features:

• Radius seal blade join – when the seal is made there is no cut into the waste film minimising the scrap required and hence reducing your on-going film costs.
• The shrink wrap film is advanced simultaneously with the scrap wind up – minimising the scrap required and allowing light weight products to be wrapped easily.
• Multi-pack function – allows multiple packs and packs that would normally trigger the photocell prematurely to be run without problems.
• Fitted with kissing conveyors to ease the transfer of product from infeed to outfeed conveyors.
• Fitted with Centre seal function as standard – centring the seal to the height of the pack, minimising the amount of film used and allowing higher packs to be wrapped.
• Each seal bar has independent temperature control.
• Low level shrink wrap film position for easy loading of film rolls.
• Fitted with adjustable perforation devices
• Fitted with touch screen display to control machine functions.
