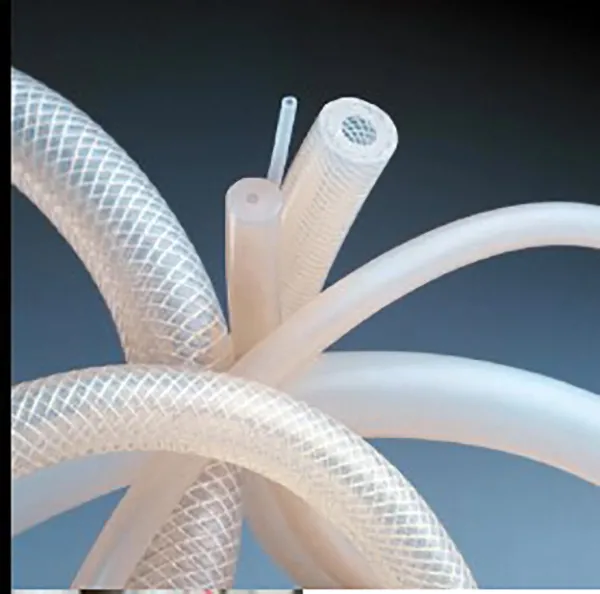

BRAID REINFORCED SILICONE HOSE

BRAID REINFORCED SILICONE HOSE

Platinum Cured Silicone, Polyester Braid

Sentinel Process Systems, Inc. offers braid reinforced silicone hoses ideal for the cosmetic, food, pharmaceutical and biopharma industries. These low-volatile, platinum-cured silicone hoses are manufactured in clean-room environments to reduce particulate.   The polyester yarn braiding inside the tube wall increases pressure capacity.

Our braid reinforced silicone hoses can handle a maximum temperature of 400 degrees Fahrenheit and are available with inside diameters ranging from 1/16 to 1 inch. Working pressures extend from 60 PSI for the 1-inch hose to 200 PSI for the 1/16-inch hose. All our reinforced hoses meet FDA, ISO, USP Class VI, European Pharmacopeia and 3-A standards.

 Features and Benefits of Reinforced Silicone Hoses

Sentinel sells end connections featuring compression, tri-clamp, Camlock, National Pipe Taper (NPT), flange, Joint Industry Council (JIC) swivel and other designs. Some of the primary benefits of our reinforced silicone hoses are:

  • Sterilizable by Autoclave, Sterilization-in-Place (SIP), Clean-in-Place (CIP) and gamma radiation processes.
  • Certified free of any animal-derived ingredients.
  • Light weight and ultra-flexibility.
  • Identification onpackaging allowing for documented lot tracing.
  • Durability ensuring long life.
