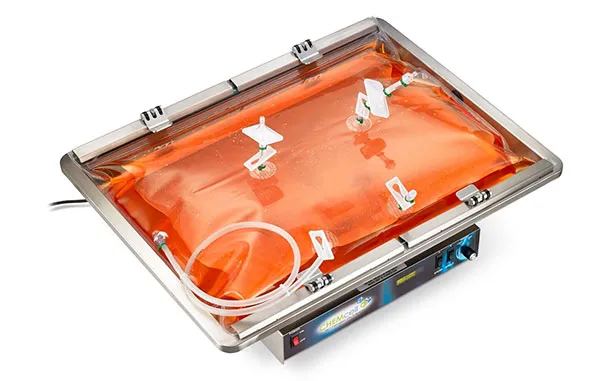

Motion bioreactor bags

Motion bioreactor bags

MOTION REACTOR BAGS

Rocker Bags

Sentinel ProcessMotion Bioreactor Bag offer the benefits of ultimate customization, fast design and quick delivery for cell culture applications. Our selection of products includes single, double and triple-barrier motion cell culture bags, all of which are for single-use applications. Choose the bag film, bag size, port geometry, port quantity, port location, tubing material, connector type, and more from an extensive library of standard bioprocessing materials and components.

Motion bioreactor bags are manufactured to the most exacting standards. To assure performance the customer can rely on, quality control inspections are performed from the raw material state to the final product. The entire process occurs under a quality system compliant to FDA standards.

Key Features:

  • Rigid plastic rods at each end
  • Gamma irradiated between 25–40 kGy
  • Manufactured under a quality system designed to be compliant to 21 CFR Part 820: Quality System Regulation
  • Assembled in ISO Class 7 Clean Room
  • All product contact materials USP Class VI Tested
  • Full traceability for all materials
  • Certificates of analysis provided for each lot
  • Extractables and leachables (E&L) data available for all contact materials

 Typical Applications Include:

  • Mammalian and plant culture cell lines with extended mixing times
  • Growing NS0 and other cholesterol sensitive clones

SPECIFICATIONS





4-Port Bag

5-Port bag

7-Port Bag

Material Layers

Single, 2-Ply, 3-Ply

Single, 2-Ply, 3-Ply

Single, 2-Ply, 3-Ply

Material

Single: LDPE or PVDF

2-Ply: LDPE, EVOH/nylon

3-Ply: LDPE, LDPE, EVOD/nylon

Single: LDPE or PVDF

2-Ply: LDPE, EVOH/nylon

3-Ply: LDPE, LDPE, EVOD/nylon

Single: LDPE or PVDF

2-Ply: LDPE, EVOH/nylon

3-Ply: LDPE, LDPE, EVOD/nylon

Bag Sizes

10L, 20L, 50L

5L, 10L, 20L, 23L, 50L

10L, 20L, 50L

Air Outlet

0.2µm filter, clamp, check valve, ¼” x 3/8” x 1.75” silicone tubing

0.2µm filter, clamp, check valve, ¼” x 3/8” x 1.75” silicone tubing

0.2µm filter, clamp, check valve, ¼” x 3/8” x 1.75” silicone tubing

Air Inlet

0.2µm filter, clamp, ¼” x 3/8” x 1.75” silicone tubing

0.2µm filter, clamp, ¼” x 3/8” x 1.75” silicone tubing

0.2µm filter, clamp, ¼” x 3/8” x 1.75” silicone tubing

Evac/Inoc Port

Clamp, female Luer lock, 1/8” x ¼” x 40” C-Flex tubing

Clamp, female Luer lock, 1/8” x ¼” x 40” C-Flex tubing

Clamp, female Luer lock, 1/8” x ¼” x 40” C-Flex tubing

Injection Site

Needleless, clamp, ¼” x 3/8” x 1.75” silicone tubing

Needleless, clamp, ¼” x 3/8” x 1.75” silicone tubing

Needleless, clamp, ¼” x 3/8” x 1.75” silicone tubing

Spare Port





Clamp, female Luer lock, ¼” x 3/8” 1.75” silicone tubing

Powder Port





1” threaded cap

Other Options

Dissolved oxygen sensor port, Ph probe port, >1” Powder ports, connectors, fittings, tubing and filters not listed above

Dissolved oxygen sensor port, Ph probe port, >1” Powder ports, connectors, fittings, tubing and filters not listed above

Dissolved oxygen sensor port, Ph probe port, >1” Powder ports, connectors, fittings, tubing and filters not listed above
