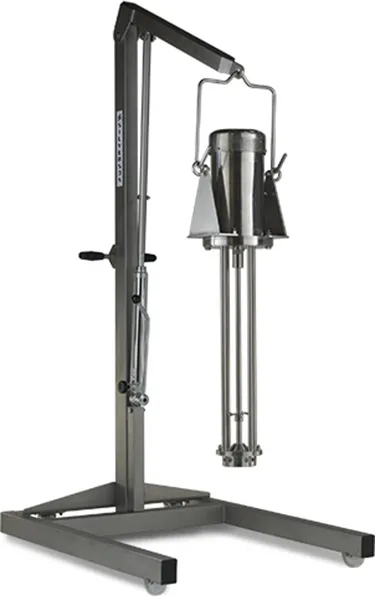

Batch Mixers
Batch Mixers
A Silverson high shear batch mixer doesn’t simply mix; it emulsifies, homogenises, solubilises, suspends, disperses and disintegrates solids. Each mixer, with its precision-engineered Silverson rotor/stator workhead, far outperforms conventional mixers, cutting processing times by up to 90%, improving quality, product consistency and process efficiency.
Silverson High Shear Batch Mixers will:
- Process from 5 to 30,000 litres
- Eliminate agglomerates and fish eyes
- Create stable emulsions and suspensions
- Reduce particle size
- Rapidly dissolve solids
- Accelerate reactions
How It Works
The advantages of Silverson’s high shear rotor/stator batch mixer over simple conventional stirrers or agitators stem from the multistage mixing/shearing action as materials are drawn through the specially designed Silverson workhead - the heart of every machine
Workheads
A comprehensive range of workheads and screens is available for all Silverson high shear mixers. These easily interchangeable workheads offer great versatility by allowing any machine to be adapted to perform a wide range of mixing operations including emulsifying, homogenising, disintegrating, dissolving, dispersing, blending, particle size reduction and de-agglomerating. Changing from one head or screen to another is quick and simple.
Technical Information
Capacity
4-30,000 litres.
Workheads
Interchangeable workheads available for all models.
Materials of Construction
Product contact parts in 316L stainless steel. Non-standard materials such as carbon steel or Hastelloy available on request.
Motor Specifications
TEFV and ATEX approved Flameproof motors are available as standard. Inverter rated, stainless steel and other motors are available as optional extras.
Mounting
All mixers can be supplied with either a rectangular or circular flange for mounting on the vessel. Smaller models can be mounted on specially constructed mobile hydraulic floor stands.
Sealing
Where sealing is required, lip seals and single or double mechanical shaft seals can be supplied.
Cleaning
Simple, easy-to-clean construction.
