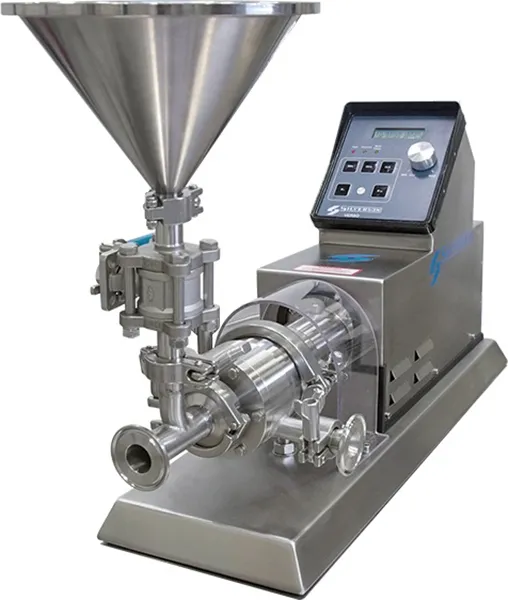

FMX5 Laboratory Scale Powder or Liquid Mixer
FMX5 Laboratory Scale Powder or Liquid Mixer
The Silverson FMX5 is a Laboratory scale version of the Flashmix Powder/Liquid mixer, it operates on the same principle as its larger counterparts and provides an accurate and easy means of predicting the performance of the Flashmix in the laboratory, helping to streamline the scale-up process. The FMX5 has been tested on a wide range of powders, giving comparable results to the production scale Flashmix. These powders include gums (CMC, Guar, Gum Arabic, Pectin, Xanthan), Carbopol, Bentonite and many others across a range of industries.
The FMX5 provides a simple, effective and hygienic means of powder/liquid mixing on a laboratory scale. The unit is suitable for small scale manufacturing and R&D work and is able to process higher viscosity mixes.
Features:
- Powerful 1 hp (0.75kW) single phase motor with infinitely variable speed control.
- All wetted parts are in grade 316L stainless steel.
- Touch pad control panel with digital tachometer, programmable integral timer and amperage display.
- Interchangeable rotor/stator arrangements.
- 1 litre stainless steel hopper as standard; other types are available to assist with flow of more cohesive powders.
- Typical batch size up to 10 litres, depending on viscosity.
How It Works
Designed with a Flashmix-style pumping rotor the FMX5 offers a unique method of incorporating powders into liquid, producing an agglomerate-free and homogeneous product at laboratory scale.
Workheads
A comprehensive range of workheads and screens is available for all Silverson high shear mixers. These easily interchangeable workheads offer great versatility by allowing any machine to be adapted to perform a wide range of mixing operations including emulsifying, homogenising, disintegrating, dissolving, dispersing, blending, particle size reduction and de-agglomerating. Changing from one head or screen to another is quick and simple.
Technical Information
The FMX5 provides simple, effective and hygienic means of incorporating powders into liquids at laboratory scale.
The FMX5 can also be specified as an Ultra-Hygienic model the FMX5 UHS.
Materials of Construction
All product contact parts are in 316L Stainless steel.
Motor Specifications
750W (1hp) 220 volt, single phase (110 volt optional), 50/60 Hz. Nominal maximum speed 9000 rpm.
Inlet and outlet connections
1” Tri-clamp fitting (via adaptor on outlet).
Sealing
Single mechanical shaft seals as standard. UHS specification model available for hygienic applications; this offers single or double mechanical sealing arrangements.
Valves
Ball valve for powder feed.
Cleaning
Designed for Clean-In-Place (CIP) operation.
Hopper
Stainless steel 1 litre hopper standard capacity. Other hopper designs available as optional extras.
Vessel Package
A vessel package including stand, valve and pipework for optimum set-up is available.
