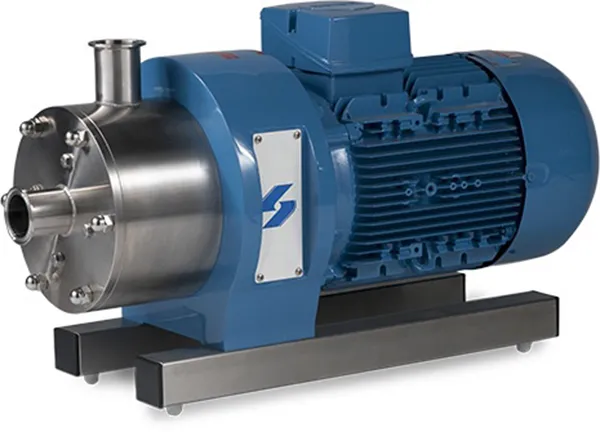

High Shear In-Line Mixers
High Shear In-Line Mixers
Silverson High Shear mixers are supremely efficient and rapid in operation and are capable of reducing mixing times by up to 90%. The action of any Silverson In-Line mixer can be modified with the use of rapidly interchangeable workheads. This enables any machine to mix, emulsify, homogenise, solubilise, suspend, disperse and disintegrate solids.
Features:
- Aeration free
- Self-pumping
- No bypassing
- Interchangeable workheads
- Hygienic construction
- Easy maintenance
- Lower power requirements
- Eliminates agglomerates and fish eyes
- Creates stable emulsions and suspensions
- Reduces particle size
- Rapidly dissolves solids
- Accelerates reactions
How It Works
Silverson's line of high shear In-Line mixers offers a great many advantages to the processor - speed, versatility, self-pumping, aeration-free, guaranteed efficiency. At the heart of every mixer is Silverson's high performance rotor/stator workhead.
Workheads
A comprehensive range of workheads and screens is available for all Silverson high shear mixers. These easily interchangeable workheads offer great versatility by allowing any machine to be adapted to perform a wide range of mixing operations including emulsifying, homogenising, disintegrating, dissolving, dispersing, blending, particle size reduction and de-agglomerating. Changing from one head or screen to another is quick and simple.
Technical Information
Capacity
Self-pumping throughputs of 20 to 300,000 litres/hr.
No Bypassing
Product cannot bypass the precision rotor/stator workhead.
Interchangeable Workheads
Single stage rotor/stator configurations as standard. For those applications that require greater shear, interchangeable multistage configurations can be used.
Materials of Construction
Product contact parts in 316L stainless steel. Special materials available on request.
Motor Specifications
TEFV and ATEX approved Flameproof motors are available as standard. Inverter rated, stainless steel and other motors are available as optional extras.
Inlet and Outlet Connections
All sanitary or flange fittings available upon request (i.e., Tri-Clamp, ASA, DIN, etc). All Silverson In-Line Mixers are designed for cleaning-in-place (CIP and SIP).
