SOTAX

AT MD Offline

AT MD Offline

Fully automated self-cleaning benchtop dissolution tester.

• 100% UNATTENDED - Run a series of dissolution tests in an unattended sequence.
• 100% TRACEABLE - Automatically execute and record all steps from vessel filling to self-cleaning of the dissolution tester.
• 100% REPRODUCIBLE - Perform all steps of the dissolution test the same way every time.
• MEDIA - Automatic heating & degassing of up to 5 different media types.
• FILTRATION - Powerful piston pumps to push through fine porosity filters for HPLC / UPLC analytical finish.
• CLEAN - Highly effective & robust cleaning of all fluid paths that can be validated.
• COLLECT - Automated sample collection in glass tubes, capped LC vials, or LC wellplates.

Highlights

Use the robotic arm to exchange basket methods for your fully automated dissolution tester AT MD

Benchtop Automation.

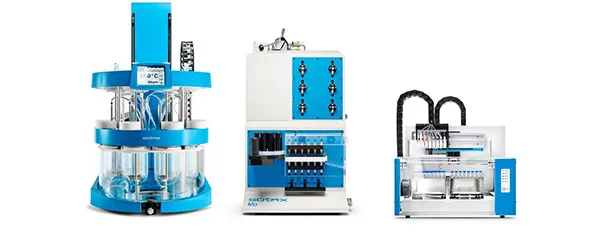

The AT MD is a fully automated dissolution tester that fits on your standard laboratory bench. It easily handles basket and paddle methods as well as sinkers including large Japanese sinkers. Once a sequence is started, the AT MD runs up to 8 unattended batches - from media preparation to self-cleaning of the system.

Dissolution testing vessel with USP2 paddle method

Heat. Degas. Dispense.

Up to 5 different media - including concentrates and media with surfactants - can be automatically heated, degassed, and dispensed into the vessels. Additionally, the AT MD can perform pH changes during tests and easily change media types between test runs. A gravimetric delivery system assures accurate and reproducible media dispensing. Various fill volumes in different vessels - from 250 mL to 1'000 mL - are possible, which makes the AT MD an ideal system for DoE studies.
