SYNEO

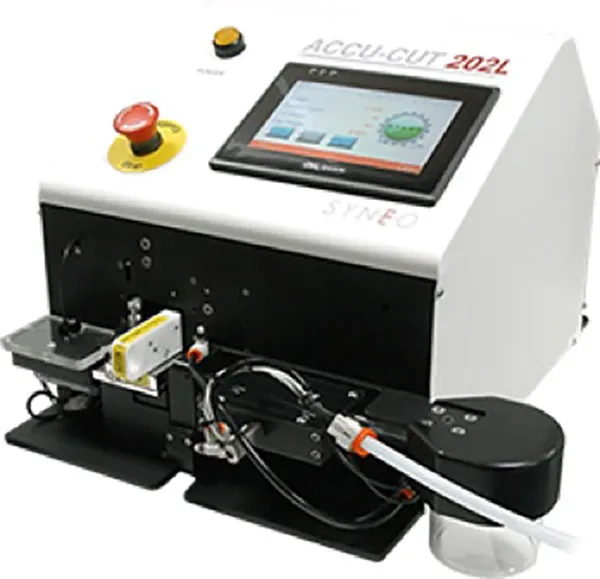

Automated Medical Tube Cutter 202L

Automated Medical Tube Cutter 202L

The 202L is a refined solution incorporating a wide range of available application specific tooling and options providing the most versatile, accurate automated tube cutting solution. This flexible medical tubing cutter offers many state-of-the-art options for recipe set-up, enhanced control, clean and convenient outputs.

Key Features for Automated Medical Tube Cutter

• Full-color, touch-screen HMI
• Unparalleled cut length repeatability and cut quality for a wide range of polymer tubing
• Recipe-driven software and quick change snap-in tooling for fast changeovers with barcode reader integrations
• Versatile output options including bag-loading, jar-loading, and other Accu-Bin integrations
• Automated drive gap control function to prevent crushing delicate materials
• Programmable routine service and maintenance reminders
• This medical tubing cutting machine can be easily integrated with SYNEO Accu-Feed products for unattended operation

Typical Materials processed

• Teflon® PTFE
• Teflon® FAP
• silicone
• polyimide
• Pebax®
• PEEK
• polyurethane
• PVC (vinyl)
• latex and natural rubber
• TPE
• PET
• polycarbonate
• acrylic
• polyethylene
• nylon 6 and small diameter nylon 12
• Delrin® (acetal)
• polypropylene
• optical fiber
• natural suture
• synthetic suture (polyglycolide)
• small diameter glass fiber
• lead and silver bearing solder

Specifications

• Power: 100-230 VAC, 50/60 Hz, 1A
• Air requirements: 30-100 PSI, 1-5 CFM
• Dimensions (W x D x H): 15" x 20" x 14"
• Weight (standard machine): 50 lbs.
• Shipping weight (standard machine): 55 lbs.
• HMI: 7" high resolution color touchscreen
• CE certified model available
