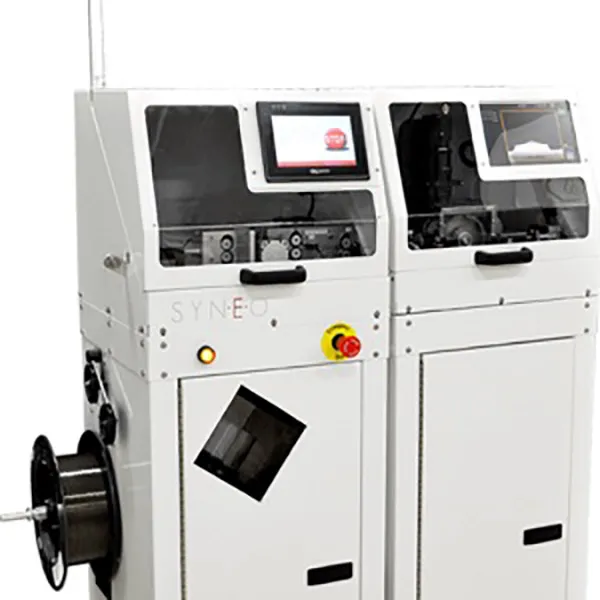

Medical Automated Tip Grinding System

Medical Automated Tip Grinding System

The medical Automated Tip Grinder (ATG) grinds nitinol and stainless steel wires, as well as polymer tubing and rod on a compact grinding stand. Built specifically to meet the tight-tolerance requirements of medical device applications, this medical device precision grinder's specially-designed vision system allows the operator to detect bad parts for automated sorting and view the grinding process on a monitor. The fully-automated process is programmable using the color LCD touchscreen and secure, easy-to-use SYNEO software.

Key features

• Full-color, touch-screen HMI
• Recipe-driven software with barcode reader integration capability
• Consistent and repeatable tip finishes and profiles
• Multi-grooved grind wheels provide programmable tip variations without tooling changeouts
• This nitinol tip grinder has a machined wheel with abrasive plating does not need to be dressed
• Suitable for NiTi and Stainless Steel Wire grinding and Polymer grinding applications
• Features SYNEO's Accu-Feed LTD, Accu-Test inspection module and Accu-Bin Pass/Fail binning capability for unattended operations.

Materials Processed

• Straight Lengths (Sticks) of Polymer Tubing
• Straight Lengths (Sticks) or spools of nitinol and stainless steel wire
• Straight Lengths (Sticks) or spools of NiTi or stainless steel coils

Specifications

• Power: 100-230 VAC, 50/60 Hz
• Air requirements: 30-100 PSI, 1-5 CFM
• Dimensions (W x D x H): 18" x 18" x 42" (grinding pedestal only)
• Weight (standard machine): 50 lbs. (grinding pedestal only)
• Shipping weight (standard machine): 100 lbs. (grinding pedestal only)
• HMI: 7" high resolution color touchscreen
• CE certified model available
