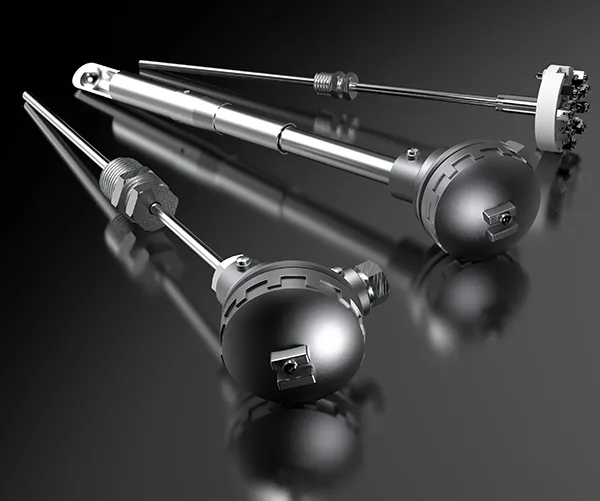

Mineral Insulated thermocouples
Mineral Insulated thermocouples
Mineral Insulated Thermocouples, commonly referred to as MgO (Magnesium Oxide) thermocouples, are used in many processes and laboratory applications. They are available in all thermocouple element types and a wide variety of sheath diameters and materials. They are rugged in nature and bendable, and their fairly high-temperature ratings make MI thermocouples a popular choice for a multitude of temperature measuring applications.
Type
J, K, T, E, N, R, S
Element size (MI)
0.25, 0.5, 1.0, 1.5, 3.0, 4.5, 6.0, 8.0 mm Other sizes on request
Sheath Material
SS321, SS316, SS310, HRS 446, Inconel 600, Nimonic, Pyrosil, Platinum etc.
Configuration
Simplex/ Duplex/ Multipoint
Configuration
|
Type
|
Names of Materials
|
Application Range
|
|
J
|
Iron (+) Constantan (-)
|
-40 to 750ºC
|
|
K
|
Chromel (+) Alumel (-)
|
-200 to 1200ºC
|
|
T
|
Copper (+) Constantan (-)
|
-200 to 350ºC
|
|
E
|
Chromel (+) Constantan (-)
|
-200 to 900ºC
|
|
N
|
Nicorsil (+) Nisil (-)
|
-200 to 1200ºC
|
|
R
|
Platinum 13% Rhodium (+) Platinum (-)
|
0 to 1600ºC
|
|
S
|
Platinum 10% Rhodium (+) Platinum (-)
|
0 to 1600ºC
|
