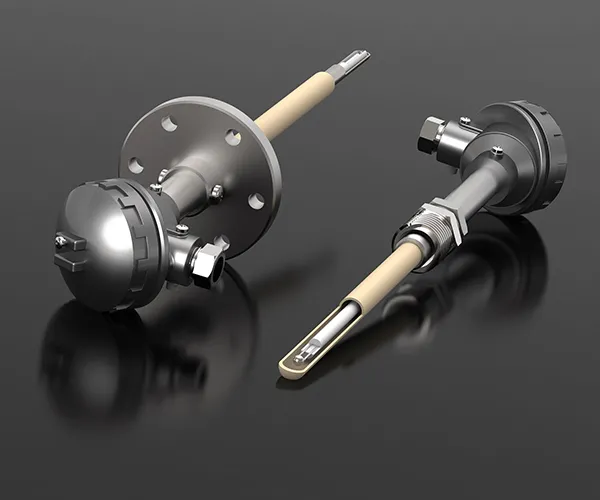

Noble metal thermocouples
Noble Metal Thermocouples are manufactured with precious or noble metals like Platinum and Rhodium. Noble metal thermocouples can be used in oxidizing or inert applications and must be used with a ceramic protection tube surrounding the thermocouple element. These are normally used for high-temperature applications. These sensors are usually fragile and must not be used in applications that are reducing or in applications that contain metallic vapors.
Type
R, S, B
Element Diameter
0.30, 0.35, 0.4, 0.45, 0.5 mm other sizes on request
Sheath Material
Recrystallized Alumina Ceramic(C-799), 610, Inconel, Silicon Carbide, Platinum, etc
Configuration
Simplex/ Duplex/ Multipoint
Special
Hot Blast & Stove Dome Thermocouples, Tri-Level Thermocouples, Crown Thermocouples
Names of Materials
Application Range
Application
R
Platinum 13% Rhodium(+) Platinum (-)
0 to 1450ºC
Inert Media, Oxidizing media
S
Platinum 10% Rhodium (+)
Platinum (-)
B
Platinum30% Rhodium (+)
Platinum 6% Rhodium (-)
800 to 1700ºC
