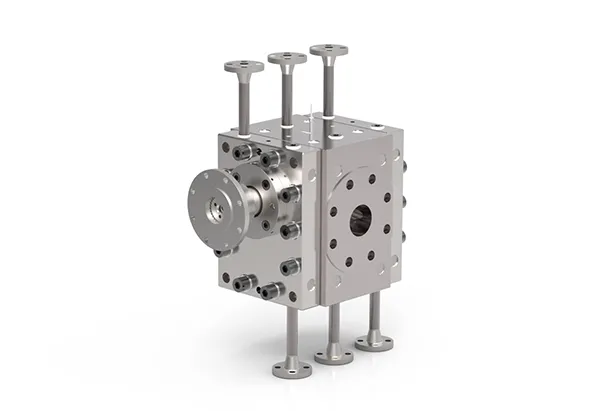

BOOSTER gear pumps
BOOSTER gear pumps
Gear pumps for pressure increase
The reliable pressure increase pump for the polymer process.
BOOSTER gear pumps from WITTE are used in the polymerization process to increase the pressure of medium to high viscous media. The hydraulically heated booster pump transports prepolymers and polymers, such as PET, PBT, PS, ABS and many others, in a very gentle manner. The heating is done through heat transfer oil or steam.
The core components such as shafts and friction bearings come from the WITTE unit block building system. The pressure increase pumps from the BOOSTER series are used wherever particularly high pressure is needed for the process. High pressures are needed, among other things, for the granulation, fiber production or for spinning pumps. The design of the BOOSTER pressure increase pumps can be adjusted to the needs of the plant and the customer’s requests.
Technical data
Housing
Heat-resistant carbon steel, for example, 1.6582 · Stainless steel 1.4313 · optional with coating
Gear Shafts
Tool steel · Nitriding steel · Special steel · optional with coating · Helical gearing · Herringbone gearing (for transportation with very low pulsation)
Shaft seals
Threaded shaft seal · Stuffing box · (Vacuum threaded shaft seal)
Heating
Heat transfer oil · Steam
Friction bearing
Tool steel · NiAG (nickel-silver) · Al bronze · Special materials · optional with coating
Operating Parameter
Viscosity
Up to 40.000.000 mPas
Temperature
Up to 350 °C
Suction pressure
Vacuum up to max. 120 bar
Transport pressure / differential pressure
Up to 250 bar
Pump sizes
From 4,7-22-22 (4,7 ccm/U – 10 kg/h) to 12.000-280-280 (12.000 ccm/U – 30.000 kg/h)
