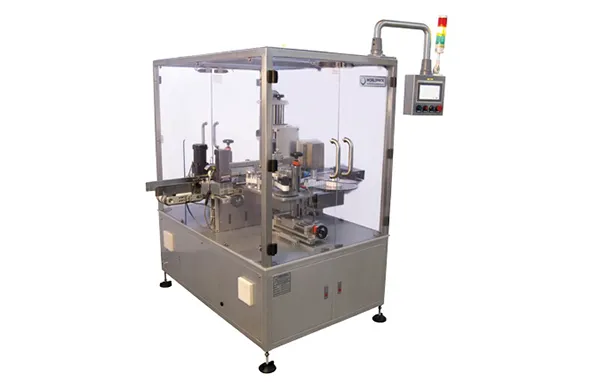

Tamper evident labelling machine
Tamper evident labelling machine is a high-performance machine with precise and automatic labelling to each side of the carton ensuring that the secure cartons leave the machine sealed with unique identity. A wide range of carton sizes can be handled at high speeds with 60- 300 cartons per minute. The track and trace feature will aid the cartons to be traced at any point during the increasingly complex world-wide supply chain for pharmaceutical products.
TECHNICAL SPECIFICATIONS
SPEED
60-300 CARTONS PER MINUTE
ROLL O.D.
350MM
LABEL MATERIAL
PAPER / FILM / PP / PE
LABEL DIMENSIONS
MIN:15MM X 25MM
MAX:20MM X 75MM
MOC
SS 304
POWER SUPPLY / CONSUMPTION
220VAC / 50HZ / SINGLE PHASE / 2.0KW
OPERATING SYSTEM
MICRO CONTROLLER WITH KEYPAD / STEPPER PLC OR SERVO WITH TOUCH SCREEN
MACHINE DIMENSIONS
1200MM X 950MM X 1500MM (L X B X H)
1500MM X 950MM X 1500MM (L X B X H) WITH TRACK AND TRACE
PRINTER
TIJ CAN BE INTEGRATED WITH THE MACHINE
APPLICATION
TAMPER EVIDENT ‘L’ SEAL ON MONO CARTONS
OPTIONAL
TUCK IN SINGLE SIDE / TUCK IN BOTH SAME SIDES / OPPOSITE SIDES
COVERED
IN DIAGONALLY OPPOSITE SIDES
STANDARD FEATURES
OPTIONAL FEATURES
