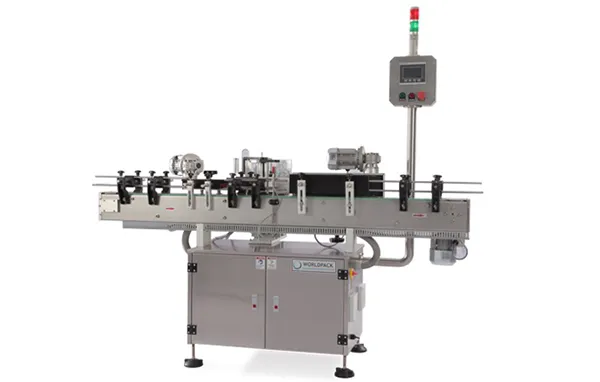

Wraparound labelling machine
Worldpack Wraparound labelling machine is a high performance and extremely reliable applicator. This labeller is compact and requires no change of parts resulting in easy operation thus resulting in cutting edge performance standards. This labeler performs at stellar speed, unbeaten precision and high reliability and is designed to be operator friendly with single point control access and variable frequency drives. Apart from the standard features, this machine also comes with optional features to detect toppled bottles, label roll end and jamming.
TECHNICAL SPECIFICATIONS
SPEED
60 TO 180 BPM
ROLL O.D.
280MM
LABEL MATERIAL
PAPER / FILM / PP / PE
LABEL DIMENSIONS
MIN: 25X 25MM MAX: 250 X250MM
MOC
SS 304/ SS 316 (AS PER CUSTOMER REQUIREMENT)
POWER SUPPLY / CONSUMPTION
220VAC / 50HZ / SINGLE PHASE /2KW
OPERATING SYSTEM
MICRO CONTROLLER WITH KEYPAD/ STEPPER PLC OR SERVO PLC WITH TOUCH SCREEN
MACHINE DIMENSIONS
2000MM X 1200MM X1900MM (L X B X H)
DISPLAY
MMI-4LINE DISPLAY/HMI-TOUCH SCREEN
WEIGHT
KGS 250
PRINTER
TIJ / TTO / CIJ CAN BE INTEGRATED WITH THE MACHINE
APPLICATION
ROUND / SQUARE PRODUCT LABELLING
OPTIONAL
EXTENSION CONVEYER / SHROUD
STANDARD FEATURES
OPTIONAL FEATURES
