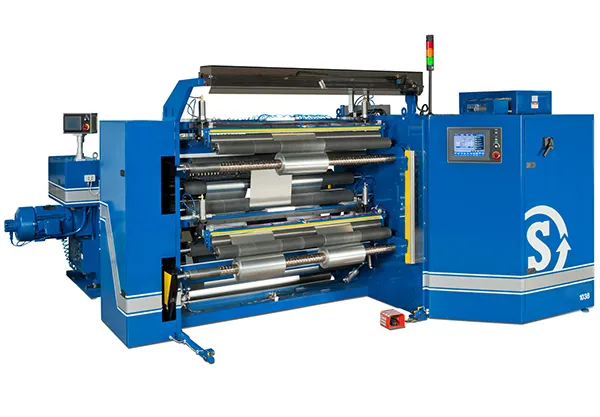

Stanford 1038 Slitter Rewinder

Stanford 1038 Slitter Rewinder

• Expanding the web width...
• The 1038 Slitter Rewinder features duplex pneumatic differential rewind shafts capable of running a wide range of extensible and non-extensible film and paper products.
• Modern features include a rewind unloading system, pneumatic top knife holders, a walkover that provides easy access for setting the slitting knives, an unwind roll lift and remote diagnostics via an Internet connection.
• Standard features include automatic unwind/rewind tension control, automatic web guiding, unlimited recipe storage and machine diagnostics.
• Accraply engineers a large selection of Stanford Doctor Machines®, a complete line of duplex differential slitter rewinders and shrink sleeve finishing equipment, as well as customized equipment.

Product Details

•     Dual differential rewind shafts
•     Pneumatically inert rider rolls for density control
•     Cantilevered rewind shafts (supported wile winding)
•     Integrated web guide and tension control
•     Unwind roll lift
•     Splice Table
•     Main Web Clamps
•     Intuitive touchscreen controls with unlimited recipes
•     Two-motor smart AC Vector drive system
•     CompactLogix PAC Control
•     Over/under winding
•     Internet based remote diagnostic with WiFi capability

Specifications

• Minimum Web Width:15”[381 mm]
• Maximum Web Width: 62” [1,575mm]
• Maximum Web Speed*:1,500 fpm[457 mpm]
• Maximum Unwind Diameter: 40”[1,016 mm]
• Maximum Unwind Roll Weight: 2,000 lbs [3,361 Kg]
• Maximum Rewind Diameter: 24”[610 mm]
• Tension:1.5 PLI [0.26 Kg/cm]
• Total Minimum Tension: 3.75 lbf[1.7 Kgf]
• Shaft Options: DXF Shafts, Cam-Lok Shafts
• Trimming Options: Razor, Score ,Shear
• Machine Options: Gap Winding ,Line/Edge Guide ,Roll Pusher ,Roll Unloading ,Laser Core Positioner ,Automatic Knife Setup ,Digital Knife Readout ,Independent Rider Rolls ,Trim Removal

* Max speed is a function of the material characteristics (including COF, coatings, ink adhesion, curing, and drying), gauge bands, tension and web width.
