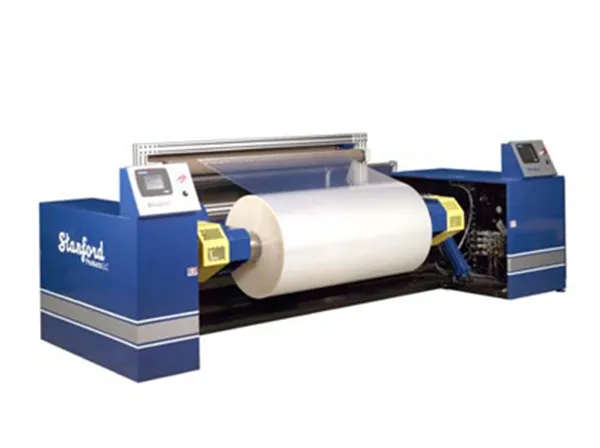

Stanford 3038-3038 HC Slitter Rewinder

Stanford 3038-3038 HC Slitter Rewinder

• When capacity and speed are paramount the Stanford 3038 | 3038HC Slitter Rewinder is well suited to wide web width, large diameters and high speed.
• The 3038 handles a wide range of materials including polyethylene, polypropylene, polyester, film laminates, self-adhesive label stock, paper and other flexible materials. With a lift-out bottom rewind shaft, the 3038 is capable of single-shaft winding complete rolls of material in a locked-core mode.A shaftless floor pick-up allows operators the ease of loading, while a step-in platform facilitates knife setup. This unit has an AC Vector drive system, CompactLogix based controls with multiple touchscreens and unlimited recipe storage.
• Accraply engineers a large selection of Stanford Doctor Machines®, a complete line of duplex differential slitter rewinders and shrink sleeve finishing equipment, as well as customized equipment.

Product Details

•     Dual differential rewind shafts
•     Shaftless Unwind w/ Floor Pick-up\
•     Intuitive touchscreen controls with unlimited recipes\
•     Independent rider rolls for density control
•     Integrated web guide and tension control
•     Bag-edge adjustment roller
•     Main Web Clamps
•     Two-motor smart AC Vector drive system]
•     CompactLogix PAC Control
•     Over/under winding
•     Internet based remote diagnostic with WiFi capability

Specifications

• Minimum Web Width: 315”[381 mm]
• Maximum Web Width: 62” / 70” [1,575 mm] / [1,778 mm]
• Maximum Web Speed*:1,500 fpm / 2,000 fpm [457 mpm] / [600 mpm]
• Maximum Unwind Diameter:40”[1,016 mm]
• Maximum Unwind Roll Weight: 2,000 lbs [907 Kg]
• Maximum Rewind Diameter:24” / 32” HC[610 mm] / [813 mm]
• HCTension:1.5 PLI [0.26 Kg/cm]
• Total Minimum Tension: 3.75 lbf[1.7 Kgf]
• Shaft Options:DXF Shafts, Cam-Lok ShaftsT
• Trimming Options: Razor, Score, Shear
• Machine Options: Gap Winding, Line Guide, Roll Pusher, Roll Unloading ,Laser Core Positioner, Automatic Knife Setup, Digital Knife Readout, Log winding, Trim Removal

* Max speed is a function of the material characteristics (including COF, coatings, ink adhesion, curing, and drying), gauge bands, tension and web width
