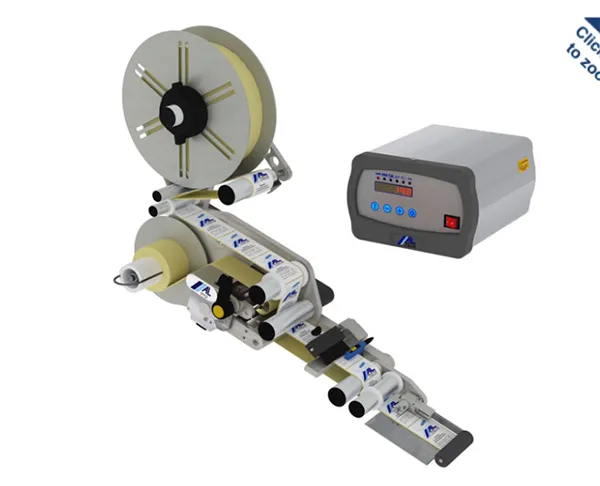

Economical Label Applicator
ALstep S (Left Hand)
ALstep is based on a robust, reliable mechanical structure which can be orientated in any rotation. It can be fitted into particularly restricted areas and thanks to side access web threading and a numbered web path, allows a fast, easy label change over.
ALstep comes in two size versions - S or M - for label widths up to 100mm and 200 mm respectively. Its maximum label dispensing speed is as high as 30m/min. (20m/min in the M version).This performance is made possible thanks to a powerful stepper motor and accurate label web tension control.
Designed in a modular manner, ALstep includes a comprehensive selection of application options to solve even the most complex label application requirements.
On the very rare occasion where a standard application solution does not exist, we have the experience and expertise to design custom label application solutions or machine configurations.
ALstep label applicators can hold label reels up to 300mm diameter (approx. 450m) on industry-standard 76mm core, for extended operation.
The unwind/rewind holding disks are manufactured from highly resilient anodised aluminium, making them virtually unbreakable. The separate LCD control box (also anodised aluminium) is 'fanless', allowing its operation in even the harshest industrial environments.
ALstep in Detail
Control Box Functions
Ancillary Devices
ALstep E (Economical)
