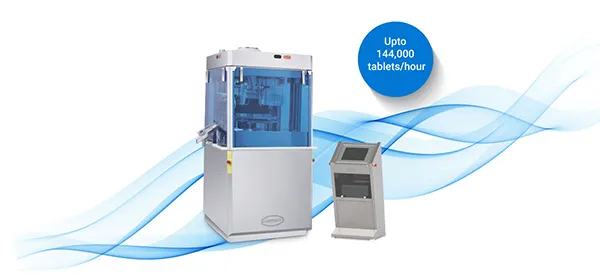

Tablet Press C 100

Tablet Press C 100

Cadmach presents its C-Series, Single Rotary Excellence with C 100 tablet Press which is a fully automatic, high speed, interchangeable turret design machine and with technology incorporating Industry’s requirements for performance & quality. This is highly recommended for R&D Tablet Press & Pilot Scale Tablet Press Requirements. The C 100 Tablet Press is offered in 20D, 24B & 30BB Turret Configurations.

Important Specifications:

Interchangeable Turret Design
Equal Pre & Main Compression of 80 kN
Single Tablet Rejection even at highest speed of operation
Servo Motorised Machine
Zero Clearance 3 Paddles Force Feeding System
Super Thick Upper Guards designed especially for Sound Reduction & Operator Safety
Machine Interlocks with indicating alarms as a Safety Device
Fully Automatic with Compaction Force Control (CFC) system for auto weight control with 15” Touch Screen Computer Panel for SCADA

TECHNICAL SPECIFICATION

MACHINE TYPE	C 100-20D	C 100-24B	C 100-30BB
No. of station	20	24	30
Type of tooling	D	B	BB
Rated output (tablets / hour)*	12,000 to 96,000	14,400 to 115,200	18,000 to 144,000
Max. Compaction force-Main (kN)	80
Max. Compaction force-Pre (kN)	80
Max. Tablet diameter (mm)	25	16	13
Max. Depth of Die Fill (mm)	20	17	17
Max. Tablet thickness (mm)	8.5
Upper punch penetration-Main & Pre comp. (mm)	3 to 6
Main ele. motor (kW / hp)	3.7 / 5.0
Power consumption (kW / hp)	5.6 / 7.5
Power supply	220 / 380 / 415 / 480V+10%, 3 Ph., 50 / 60 Hz
Overall Dimensions (cm)	117 W x 136 D x 193 H
Net weight (kg)	2000
