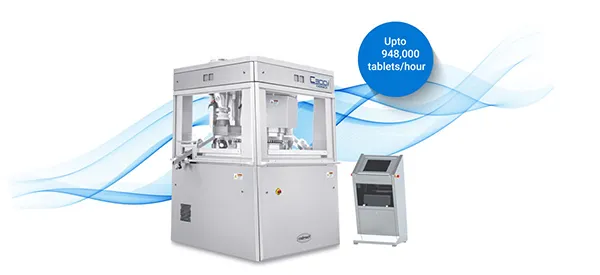

Tablet Press C 300i

Tablet Press C 300i

Cadmach presents its C-series,Double Rotary Excellence – Direct Drive Torque Motored with C 300i Tablet Press which is a fully automatic, high speed, interchangeable turret design machine and with technology incorporating Industry’s requirements for performance & quality. This is the most successful machine in the industry for Bi-layer Tableting. The C 300i Tablet Press is offered in 49D, 61B, 73BB, 79BBS & 110 (Special Tooling) Turret configurations.

Important Specifications:

2500 Nm capacity of Torque main motor used with water cooling system
High Speed of 100 RPM
Very low Noise level will be achieved because of Torque Driven
Biometric Fingerprint lock system in IPC
Equal Pre & Main Compression of 100 kN
Single Tablet Rejection even at highest speed of operation
Servo motorised Machine
Bi-Layer Tableting with a lot of ease and Separate first Layer Sampling available
Zero Clearance, 3 – Paddles Force Feeding System
Super Thick Upper Guards designed especially for Sound Reduction & Operator Safety
Machine Interlocks with indicating alarms as a Safety Device
Compaction Force Control (CFC) system for Auto Weight Control with 15” Touch-screen Computer Panel for SCADA

TECHNICAL SPECIFICATION

MACHINE TYPE	C 300i-49D	C 300i-61B	C 300i-73BB	C 300i-79BBS
No. of station	49	61	73	79
Type of tooling	D	B	BB	BBS
Rated output (tablets / hour)*	58,800 to 588,000	73,200 to 732,000	87,600 to 876,000	94,800 to 948,000
Turret speed (rpm)	10 - 100
Max. Compaction force-Main (kN)	100			100 **
Max. Compaction force-Pre (kN)	100			100 **
Max. Tablet diameter (mm)	25	16	13	11
Max. Depth of die fill (mm)	20	18	18	18
Max. Tablet thickness (mm)	8.5
Upper punch penetration-Main & Pre comp. (mm)	2 to 4
Torque direct drive (kW / hp)	15.7 / 21.0
Power consumption (kW / hp)	22.4 / 30.0
Power supply	220 / 380 / 415 / 480 V +10%, 3 Ph., 50 / 60 Hz
Overall dimensions (cm)	172 W x 172 D x 207 H
Net weight (kg)	5350
