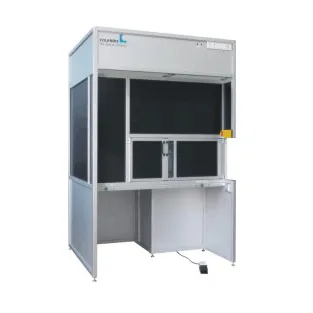

Mini environments
Mini environments
The local solution to guarantee the purity of your product
In many sectors, the development of modern technologies requires the production of highly sensitive components under strictly clean conditions. However, imposing clean room conditions on an entire process chain is only necessary in the rarest of cases and is often not the optimal solution. It is often sufficient to deliberately limit pure conditions to individual process steps, thus saving costs and valuable resources. At this point, COLANDIS offers you a local, highly efficient solution.
How a mini environment works
Mini-environments offer the possibility of completely shielding a single process and thus excluding external environmental influences. In the first step, an individual enclosure is developed for the area to be protected or the process plant. In the second step, conditioned clean air flows through this via an optimized arrangement of specially developed fan-filter modules , either vertically or horizontally. In this way, we guarantee a clean environment up to an air purity level of ISO class 1 (according to DIN EN ISO 14644-1), specially tailored to the process and independent of the prevailing cleanliness conditions in your production hall.
The right solution for your process
A detailed examination of the process chain and the product to be manufactured reveals how high the cleanliness requirement and the extent of the associated measures in production actually have to be. Various requirements and necessities of the sub-area and also the adjacent process steps are considered. In close cooperation with trained staff, we develop a concept with you that perfectly implements the cleanliness requirements of your process.
For suggestions and examples of an individual solution, our free white paper "Clean room technology with measure and goal" is available for download.
Advantages of a mini environment
As the name suggests, the size of a mini environment is a decisive advantage in terms of cost and raw material savings. The technical and energetic effort is significantly reduced compared to a clean room. In fact, however, there are significantly more advantages for your process with an individual mini-environment solution from COLANDIS:
• Air cleanliness class ISO 1 (according to DIN EN ISO 14644-1) can be achieved
• Minimum installation area limited to the actual need for the clean environment
• Optimized flow concept ( laminar flow possible)
• Specific adaptation of the climatic conditions for each individual process step
• Integrated monitoring of climatic data and all clean air parameters possible
Areas of application
If a clean room is considered for a manufacturing process, it is always worth considering the alternative of a mini-environment solution. In many areas of the semiconductor industry, unique concepts have already been implemented that optimally exploit the advantages compared to a clean room. By coordinating this local clean room environment, specific requirements can be implemented more quickly and precisely, especially with regard to the repercussions on the product itself.
