SAL (Sanitary Airlock)

SAL (Sanitary Airlock)

•    For sanitary use
•    Easily detachable rotor
•    Low capacity
•    Complete valve highly polished (inside and outside)
•    Product surfaces FDA approved
•    Maximum product temperature up to 100 °C
•    System pressure up to 1 bar g
•    Versions conforming to ATEX 2014/34/EU available

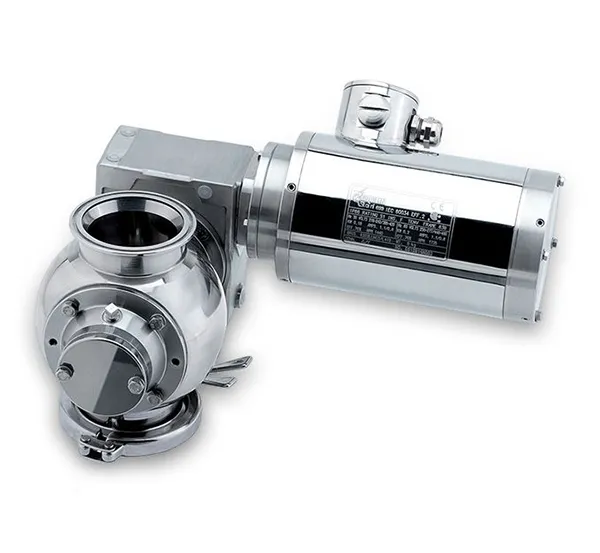

The SAL (Sanitary Airlock) is a low capacity rotary valve with a highly polished surface on both the inside and outside. The SAL is specially designed for metering purposes in applications where stricht hygienic standards are required. Ease of operation and cleaning make the SAL very suitable for use in the pharmaceutical, food and chemical industries. The complete valve can be dismantled for inspection and cleaned in a matter of minutes, thus reducing eventual downtime and production loss. The SAL is available in 5 sizes: DN50, DN65, DN80, DN100 and DN150, with capacities of 0.07, 0.13, 0.25, 0.8 and 2.5 litre per revolution at 100% fi lling. Larger sizes are available on request.
