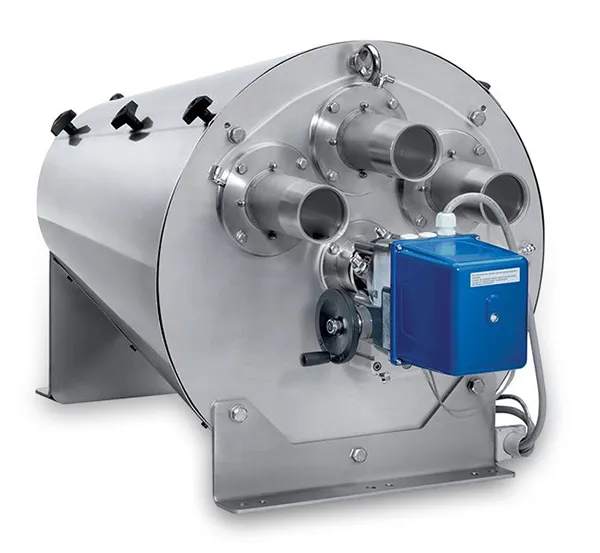

Tube Diverter 3-TDV

Tube Diverter 3-TDV

•    USDA Dairy Accepted versions available
•    Available with 2 or 3 ports
•    Smooth product contact surfaces
•    Inflatable seals
•    Pressure from -0,8 up to 3 bar g
•    Multiple choice of line connections
•    Minimised product degradation
•    Converging and diverging applications
•    Easy detachable construction
•    Temperature range -20 °C up to +100 °C
•    All stainless and aluminium stainless configurations
•    Versions conforming to ATEX 2014/34/EU available

The 2-TDV and 3-TDV transport pneumatically conveyed products in powder or pellet form to or from two respectively 3 destinations (diverging or converging). The 2-TDV and 3-TDV are compactly designed and by using an additional line cylinder on the 3-TDV very accurate positioning is achieved. The diverters are designed to be easily removed from the line for cleaning (COP – cleaning out of place). It is also possible to purge the individual conveying lines with a cleaning liquid without removing the diverter from the line (CIP – cleaning in place). Removal from the line is only necessary when a complete cleaning operation is required. This gives the customer the option to chose a cleaning method tailored to suit their process. The 2/3-TDV and M-TDV tube diverter range includes USDA Dairy Accepted models.
