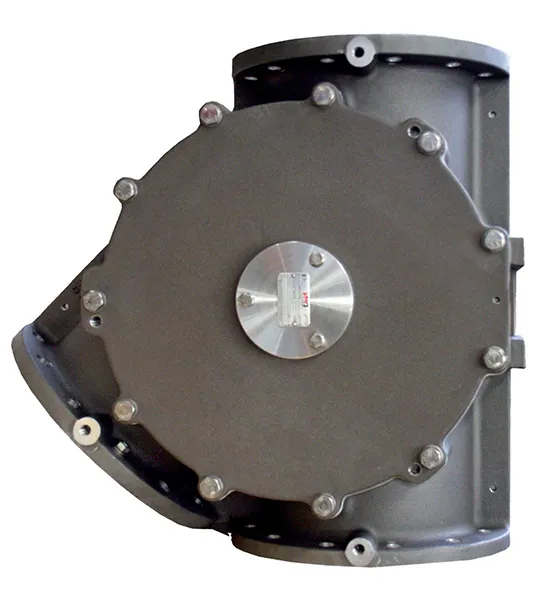

Single Pipe Plug Diverter-SPTD

Single Pipe Plug Diverter-SPTD

•    Universal application
•    Sizes from NB 150 up to 400 (6" to 16")
•    Available in metric or inch pipe size
•    Pressure up to 3 bar g
•    Maximum product temperature +80 °C for standard models
•    For diverting only
•    Static or dynamic sealing
•    No moving parts on the outside
•    Special versions available
•    Versions conforming to ATEX 2014/34/EU available

The SPTD single straight pipe plug diverter has been specially designed to route powders and pellets with minimum degradation in pneumatic conveying systems. The straight pipe makes the SPTD very suitable for applications in the food, pet food, plastics (recycling) and petrochemical industries. A smooth passage of product is guaranteed by precision machining, very effective sealing and a complete obstruction free passage. The user friendly fool proof design enables fast in situ internal examination, cleaning and, if necessary, replacement of seals. The design of the SPTD plug diverter conforms to all current legislation regarding safety in the workplace. Consequently there are no moving parts on the outside. The SPTD is available in 6 consecutive sizes from 150 up to 400. For smaller sizes we offer the SPTDS single straight pipe plug diverter, which is available in 5 consecutive sizes from 50 up to 125.
