FREWITT

FlexMill CW-200

FlexMill CW-200

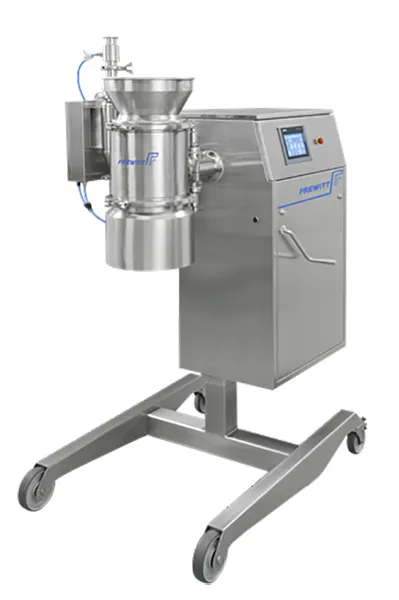

The FlexMill CW-200 is a high-performance, high-quality conical sieve mill that is used for deagglomerating and sizing granular products to a fineness of 150 µm.

Thanks to its compact and modular design, the CW-200 is easy to integrate in complete process plants. With its extraordinary diversity and high performance, this conical sieve mill can be used in any demanding milling process, whether for achieving optimum grain size distribution or high flow rates, as well as for milling temperature-sensitive products, or potentially explosive substances.

Process data

• Particle Size range
  5 cm - 150 µm
• Throughput min - max
  500 - 2500 kg/h
• Density
  up to 2 kg/dm3
• Temperature range product
  from -20°C to +60°C

THE ADVANTAGES OF THE CONIWITT

• Very broad scope of application ranging from all types of dry to wet and sensitive powders
• Diverse usage possibilities ranging from stand-alone and inline to integration in complete installations
• Clear GMP-capable concept for smooth, reproducible production including scale-up
• High level of production safety thanks to certified ATEX construction for Zone 0/20 and a MIE range down to > 1 mJ
• High level of operational safety for containment requirements up to OEB 5 (< 1 μg/m3 )
• Easy and quick cleaning - Washing in place (WIP), CIP, SIP optionally available
• Ultimate production flexibility due to the modular design
• Versatile usage due to a large selection of milling elements, which can be changed easily and quickly
• Energy input reduced and optimised, guaranteeing reduced heating of the product
