FREWITT

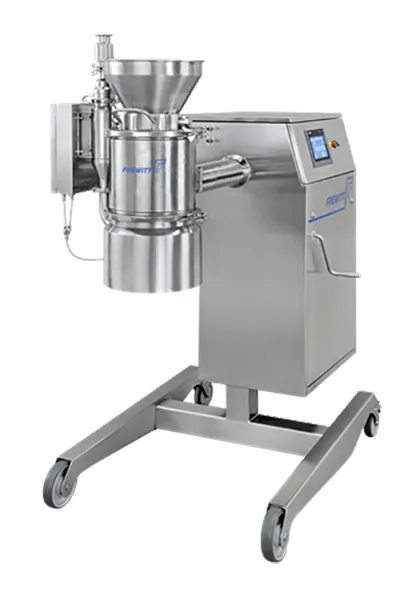

FlexMill SW-200

FlexMill SW-200

The FlexMill SW-200 is a cylindrical sieve mill. Having a rotating sieve drum; it is well-suited for homogenizing and control-sieving granular products to a fineness down to 150 µm.

Its rotating sieve drum brings substantial benefits. The centrifugal forces acting on the product and the two changeable stator arms gently and very efficiently convey the product through the sieve opening.

Its compact and modular design allows easy integration in nearly all process flows.

Process data

• Particle Size range
  up to 150 µm
• Throughput min - max
  1000-15000 kg/h
• Density
  up to 2 kg/dm3
• Temperature range product
  from -20°C to +60°C

• Very broad scope of application ranging from all types of dry to wet and sensitive powders
• Diverse use possibilities ranging from stand-alone to in-line, as well as integration in complete plants
• Clear, GMP-capable concept for smooth, reproducible production
• High level of production safety due to certified ATEX construction for Zone 0/20 and a MIE range down to > 1 mJ as option
• High level of operational safety for containment requirements up to OEB 5 (< 1µg/m3)
• Easy and quick cleaning Washing-in-Place (WIP) - (Cleaning-in-Place (CIP) + Sterilization-in-Place (SIP) as option
