FREWITT

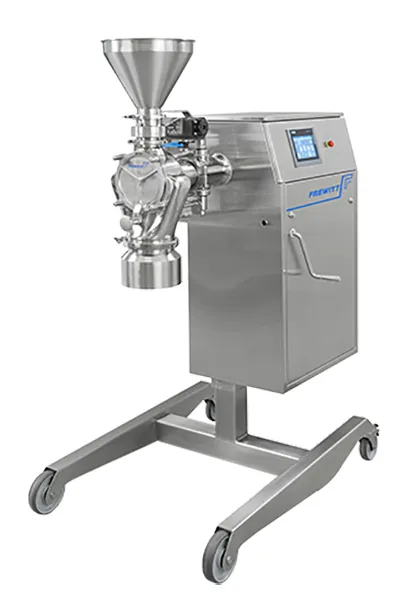

FlexMill HW-3

FlexMill HW-3

The FlexMill HW-3 is a hammer mill that guarantees optimum milling results in the fine milling and pulverization of hard, crystalline, and fibrous products to a fineness of 30 µm.

Its compact and modular design allows easy integration into shredding and packaging plants.

Thanks to its high rotational speed and unique design, it guarantees remarkable performance in terms of fineness and throughput for the most demanding products.

Process data

• Particle Size range
  2 cm - 30 µm
• Throughput min - max
  up to 700 kg/h
• Density
  2 kg/dm3
• Temperature range product
  from -20°C to +60°C

THE ADVANTAGES OF THE HAMMERWITT

• Very broad scope of application ranging from all types of dry to wet powders
• Diverse usage possibilities ranging from stand-alone and inline to integration in complete plants
• Clear GMP-capable concept for smooth, reproducible production including scale-up
• High level of production safety thanks to certified ATEX construction for Zone 0/20 and a MIE range down to > 1 mJ
• High level of operational safety for containment requirements up to OEB 5 (< 1 μg/m3 )
• Easy and quick cleaning - Washing in place (WIP), SIP optionally available
• Ultimate production flexibility thanks to the modular design, which enables milling heads to be changed within a few minutes
• Versatile usage due to a large selection of milling elements, which can be changed easily and quickly
• Rapid milling ensures low energy input and minimal temperature increase
