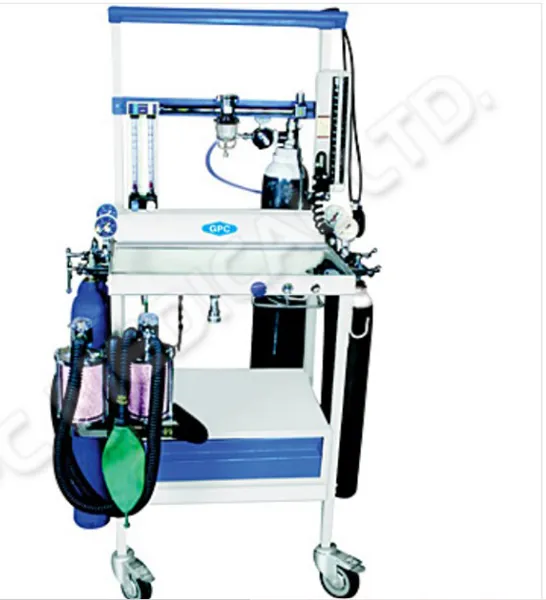

ANAESTHESIA MACHINE MAJOR J

Anaesthesia Machine Major- J

• Construction: Trolley made of tubular rigid steel section electrostatically powder coated or stainless steel
• Capacious drawer for keeping anaesthesia kit/accessories
• Extended platform at rear for two 10 ltrs. (Water Cap.) Cylinders
• Large roller bearings, antistatic castors for easy mobility and brakes
• Top tray provided at eye level for monitoring equipments
• Hook for breathing circuit
• Wipe clean stainless steel top
• Convenient mounting of circle absorber (Optional)
• Unitised rotameters block for oxygen & nitrous oxide with fine adjustment controls & colour coated knob and luminous back plate.
• Oxygen flow meter calibrated from 100cc/mm to 10 ltrs/min & Nitrous oxide flow meter from200cc/mm to 12 ltrs/min down Stream receipt of oxygen (air 0 to 12 ltrs optional)
• One gold man type vaporizer for halothene, provision to mount three vaporizers at a time
• Non return cum blow off valve in circuit ensures that pressure does not build-up beyond 200cm. water column & minimises risk of back flow of gases 60 psl outlet for driving ventilator
• Change over system open circuit or close circuit
• Emergency Oxygen flush valve at table level to give 35-60 ltrs/min for emergencies
• Cylinder yokes: Pin indexed yokes two each of oxygen & nitrous oxide
• 63 mm diameter, colour coded gauges fitted at convenient angle for better visibility & clarity
• High efficiency regulators for reliability, two each for O2 & N2O
• One Maggill’s or Brain circuit

Safety Features

• Emergency oxygen flush
• Alarm to provide audible indication of O2 supply pressure failure
• Nitrous oxide shut off in the event of O2 failure
