ANAESTHESIA MACHINE MAJOR S

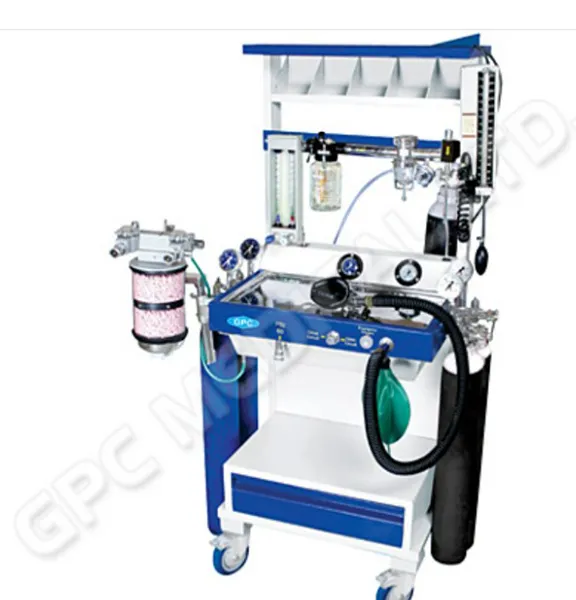

Anaesthesia Machine Major S

• Capacious drawer for keeping anaesthesia kit/accessories
• Extended platform at rear for two10ltrs. (Water Cap.) Cylinders
• Large roller bearings, antistatic castors, for easy mobility and brakes
• Top tray provided at eye level for monitoring equipments
• Hook for breathing circuit
• Clean stainless steel top
• Provision to fit ventilator
• Emergency drug tray fitted at convenient placeUnitised rota meter block for oxygen & nitrous oxide with fine adjustment controls & colour   coated knob and luminous back plate. Oxygen flow meter calibrated from 100cc/min to 10 ltrs./ Minute & Nitrous oxide flow meter from 200cc/mm to 12 liters/min
• One gold mantype vaporizer for halothene,  provision to mount three vaporizer at a time.
• Non return cum blow off valve in circuit ensures that pressure does not build-up beyond 200cm. Water column & minimises risk of back flow of gases.
• 60 psl outlet for driving ventilator
• Change over system open circuit or close circuit
• Emergency Oxygen flush valve at table level to give 35-60 ltrs/min for emergencies
• Cylinder yokes: pin indexed yokes two each of oxygen & nitrous oxide
• 63 mm diameter, colour coded gauges fitted at convenient angle for better visibility & clarity, one guage for 0₂ & one gauge for
• N20 shown the line pressure
• High efficiency regulators for reliability, two each for 0₂ & N₂O
• One Maggills or Brain Circuit
• One B.P Apparatus.

Safety Features

• Hypoxic guard
• Emergency oxygen flush
• Alarm to provide audible indication of O₂ supply Pressure failure
• Nitrous oxide shut off in the event of O₂ failure
