ANAESTHESIA MACHINE MINI

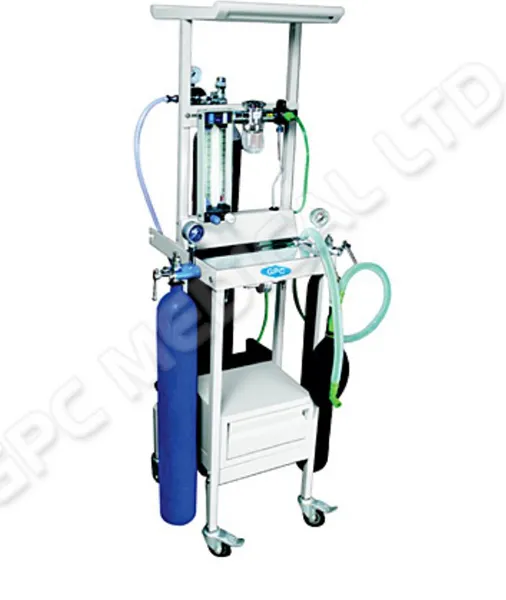

Anaesthesia Machine Mini

• Construction: Trolley made of tubular rigid steel section electrostatically powder coated or stainless steel
• Suitable drawer for keeping anaesthesia kit
• Extended platform for one 10 ltrs. (Water capacity) cylinder
• Small roller bearings, antistatic castors, for easy mobility and brakes
• Top tray provided at eye level for monitoring equipments
• Hook for breathing circuit
• Wipe clean stainless steel top
• Unitised rotameter block for oxygen & nitrous oxide with fine adjustment controls.& colour coated knob and luminous back plate. Oxygen flow meter calibrated from 100cc/min to 10 Ltrs. Minute & nitrous oxide flow meter from 200cc/min to12 Ltrs./min down Stream receipt of oxygen
• One gold man type vaporizer for holothene
• Non return cum emergency oxygen unit with blow off valve in circuit ensures that pressure does not build-up beyond 200cm. water column & minimises risk of back flow of gases.
• Cylinder yokes: Pin indexed yokes one each of oxygen & nitrous oxide 50mm diameter, colour coded gauges fitted at convenient angle for better visibility & clarity
• High efficiency regulators for reliability, one each for O2 & N2o.
• Self sealing valve attachment for additional oxygen source from central gas pipe line
• One Maggill’s or Brain circuit

Safety Features

•  Emergency oxygen flush
•  Nitrous oxide shut off in the event of O2 failure
