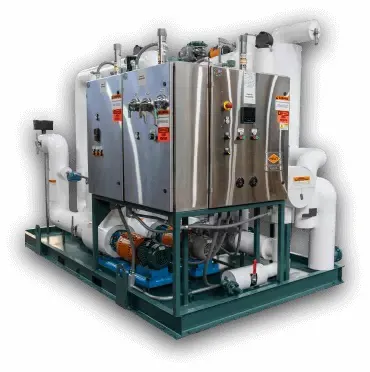

Exchanger Mode Heating
CUSTOM ENGINEERED EXCHANGER MODE HEATING
EMO Series Custom Engineered Exchanger Mode Heated Hot Oil Systems offer Safe Reliable Performance in an industrial-grade system that takes advantage of your facility’s central heat source to precisely control temperatures in a specific secondary closed loop of your process using indirect heat exchange.
For use with available plant steam or an existing hot oil central heating source, the EMO Series system provides precise indirect temperature control with maximum operating temperatures up to 650°F. Capable of using up to 600 Volt, 3-Phase, 50/60Hz power and heating capacities up to 10MM Btu/hr. If plant steam or an existing central heating source is not available, combine with one of HEAT’s SL Series hot oil systems to provide the necessary heating capacity.
Our engineering team will work with you to design a system based on your unique process or application. EMO Series systems typically include a Circulating Pump, Heating Circuit, Cooling Circuit, Expansion Tank, and Control Panel. These units are constructed with all-welded Carbon Steel or Stainless-Steel wetted materials, are insulated with Non-Wicking Cellular Glass Insulation, and assembled on a drip-proof, seal-welded plate-and-channel fluid containment base.
HEAT offers four distinct levels of customization, ranging from minimal customization to fully built-to-specification designs. Each unique system undergoes a Factory Acceptance Test in accordance with HEAT standard practice prior to shipment.
GENERAL SPECIFICATIONS
- Maximum Operating Temperatures up to 650°F
- Steam or Thermal Fluid Heating
- Heating Capacities Up to 10MM Btu/hr.
- Up to 600 VAC, 3-Phase, 50/60Hz Power Capabilities
- General Purpose and Hazardous Area Designs
- Designs Temperatures of 300°F, 450°F, 550°F, and 650°F
GENERAL FEATURES
- 4 Levels of Customization
- Indoor/Outdoor installation
- Heat Only & Heat/Cool Designs Available
- Uses Existing Plant Steam or a Central Hot Oil Loop as a Heat Source
- Fluid Maintenance & Sampling Ports
- Seller standard or Custom Paint Colors
