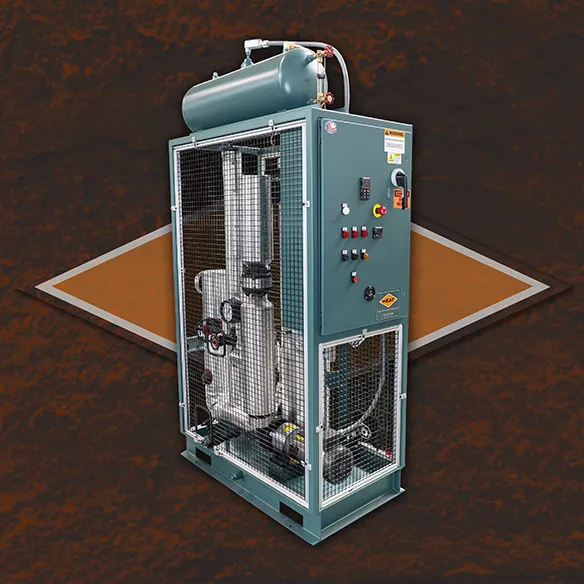

Pre-Engineered NFP550 Series

Pre-Engineered NFP550 Series

The Pre-Engineered NFP550 Series of hot oil systems offers fast delivery and Safe, Reliable Performance in a compact and industrial-grade modular package with maximum operating temperatures of up to 550°F. Designed for use with hot oil heat transfer fluids, NFP550 systems are NFPA 87 complaint ready and include a centrifugal pump, electric heater assembly, and control panel.

Packaged, skid-wired, and assembled on a drip-proof, seal-welded plate-and-channel fluid containment base, each system undergoes a Factory Acceptance Test in accordance with HEAT standard practice prior to shipment.

Made-to-order designs offer reduced lead times with limited models in stock for immediate shipment.

SPECIFICATIONS

• 40kW to 240kW Electric Heaters Available
• 480VAC, 3-Phase, 60Hz Power Supply
• Flow rates from 35 GPM to 205 GPM
• 18 to 60 Gallon Expansion Tanks Available
• ANSI 150lb. Flange Piping Connections

FEATURES

• Indoor/Outdoor Installation
• NFPA 87 compliant ready design
• Wiring per NFPA70, NFPA79, NEC and UL Standards
• Engineered for Mineral, Synthetic and Silicone-Based Heat Transfer Fluids
• ASME Code Stamped Heater Chamber
• Mechanical Seal and Magnetic Seal-less Pump Designs Available
• All-Welded, ASME B31.3 Piping System
• Fluid Maintenance & Sampling Connections
• Cooling Modules Available

SAFETY

• Non-Wicking Cellular Glass Insulation
• Spray Shields on Flange Connections
• Industrial Mesh Machine Guarding
• Remote & Local E-Stop Capability
• Safety Interlocks:
  • Fluid High Temperature
  • Heater High Temperature
  • Low Flow
  • Low Level

INDUSTRIES

• Aerospace/Defense
• Automotive
• Consumer/Personal Care
• Food & Beverage
• Pharmaceutical
• Power/Energy
